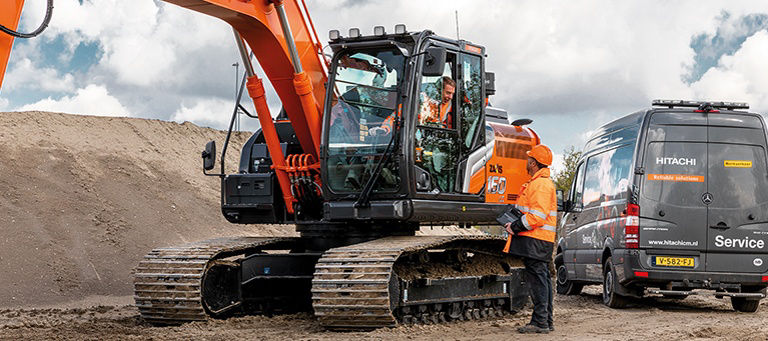

About the ZX180-7

You can work on a wide range of projects with the new Hitachi ZX180-7 medium excavator. It is available with a long undercarriage (LC) for optimal stability and a narrow option (LCN) for easy transportation, and has a reduced swing radius for confined spaces.

Discover the benefits
  • Up to 7% reduced fuel consumption compared to previous models.
  • Enhanced efficiency due to Hitachi’s industry-leading hydraulic system, HIOS IV.
  • Reduced swing radius for working safely in confined spaces.
  • Improved comfort in the cab with integrated console and seat suspension, reduced noise and low vibration levels.

Specifications for the ZX180-7 Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model Yanmar 4TN107
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Turbocharged, intercooled, cooled EGR
Aftertreatment DOC+CSF+SCR
No. of cylinders 4
Rated power ISO 14396 101.3 kW at 1 900 min-1
Maximum torque 602 Nm at 1 500 min-1
Main pumps 2 variable displacement axial piston pumps
Maximum oil flow 2 x 190 L/min
Pilot pump 1 gear pump
Maximum oil flow pilot pump 31.9 L/min
  • Bucket and arm digging force
Bucket digging force ISO 6015 2006 127 kN
Arm crowd force ISO 6015 2006 95 kN
  • Operating weight and ground pressure
Shoe type Triple grouser
Shoe width 500 - 800mm
Arm length 2.58
Monoblock weight 19 200 – 19 800
Monoblock pressure 33 – 43 kPa
2-Piece weight 20 000 – 20 500 kg
2-Piece pressure 34 – 45 kPa
  • Working ranges
Arm length 2.58m
Max. digging reach 9 430mm
Max. digging depth 6 570mm
Max. dumping height 6 570mm
  • Dimensions
Undercarriage length 4 170mm
Undercarriage width 2 800mm
Overall width of upperstructure 2 500mm
Overall height of cab 2 950mm
Overall width 2 800mm
  • Specifications
Engine Rated Power (kW) 101.3 kW (ISO14396)
Operating weight (kg) 18 900 - 20 500 kg
Backhoe Bucket ISO Heaped 0.51 - 0.91 m3
Max. digging depth (mm) 6 570mm
Attachments enhance the performance of your ZX180-7
  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.

André Molenaar A. Molenaar zand en grond B.V.
It’s great to work with the people from Hitachi, because they have the same mentality as we do. They are solution-focused - that was the case 30 years ago, and it still is today.
