Overview

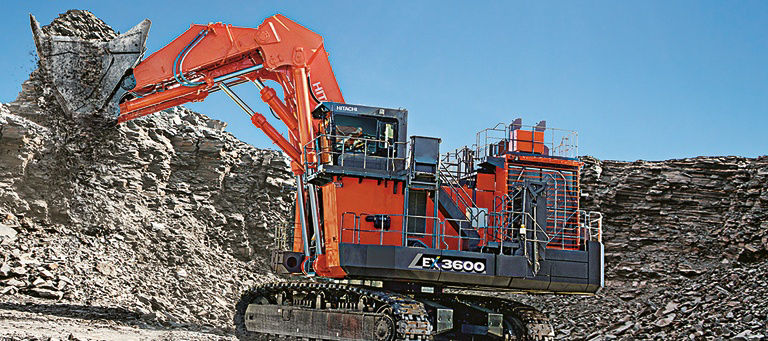

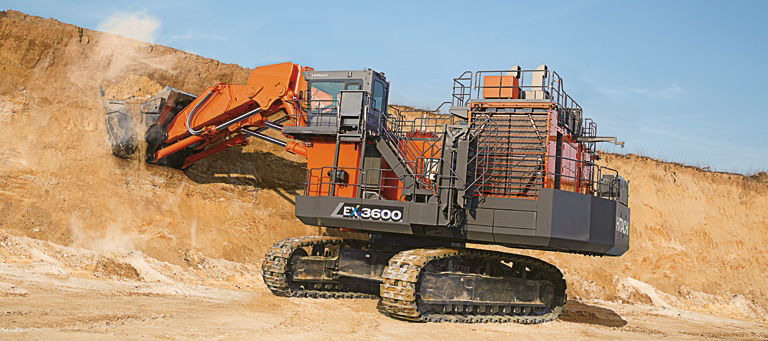

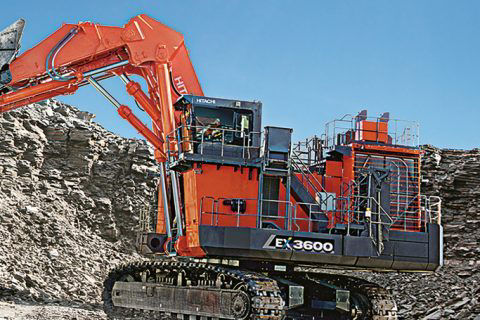

About the EX3600-7

The EX3600-7 has been built to withstand the harshest mining conditions while delivering outstanding productivity and exceptional around-the-clock performance. Operators also benefit from complete comfort, thanks to enhanced features in the cab, such as advanced air suspension seating and improved climate control.

Benefits
Discover the benefits
  • Superior productivity under different digging profiles.
  • Hitachi’s energy optimisation technologies are kinder to the planet and reduce consumption costs.
  • Easier and safer to maintain than ever before with an intuitive design.
  • Low vibration levels in the cab results in a more comfortable working environment.
Specifications

Specifications for the EX3600-7 Excavator

Tout développer Tout réduire
  • Moteur et système hydraulique
Modèle Cummins QSKTA60-CE (FCO, T4F/EU Stage V)
Puissance nominale ISO 14396 1 450 kW (1 971 PS, 1 944 HP)
Cylindrée 60 L
Pompes principals 8 variable-displacement, axial piston pumps for front attachment, travel and swing
Réglage de la pression 29.4 MPa (300 kgf/cm2, 4 264 psi)
Débit d’huile maximal 6 X 335 L/min
  • Attachements
Chargement de pelle ISO 7546 Empéré 2 22.0 m3 (28.8 cu. yd.) : Material density
Chargement de pelle ISO 7546 Empéré 2 24.0 m3 (31.4 cu. yd.) : Material density
Backhoe ISO 7451 2007 22.0 m3 (28.8 cu. yd.) : Material density
Backhoe ISO 7451 2007 24.0 m3 (31.4 cu. yd.) : Material density
  • Poids et pression au sol (Chargement de pelle)
Type de fleche Loading Shovel
Largeur de patin 1 270 mm (50 in.)
Poids en ordre de marche 369 000 kg (813,506 lb.)
Pression au sol 193 kPa (1.97 kgf/cm3, 28 psi)
  • Poids et pression au sol (Tractopelle)
Type de fleche Backhoe
Largeur de patin 1 270 mm (50 in.)
Poids en ordre de marche 370 000 kg (815,710 lb.)
Pression au sol 194 kPa (1.98 kgf/cm , 28.1 psi)
  • Rayons d’action
Longueur de bras 4.5 m
Portée de fouille max. 18 240 mm
Profondeur de fouille max. 8 630 mm
Hauteur de déversement max. 11 540 mm
  • Longueur du train de chenilles
Largeur du châssis inférieur width 8 700 mm
Largeur globale superstructure 9 420 mm
  • Caractéristiques
Puissance nominale du moteur (kW) 1,450 (1,971 PS)/MTU: 1,450 (1,971 PS)
Poids en ordre de marche (kg) 365 000 - 366 000 kg
Godet rétro remplissage ISO 22 m³
Profondeur d'excavation max. (mm) 8 630 mm
Attachments
Attachments enhance the versatility of your EX3600-7
  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.
