Overview

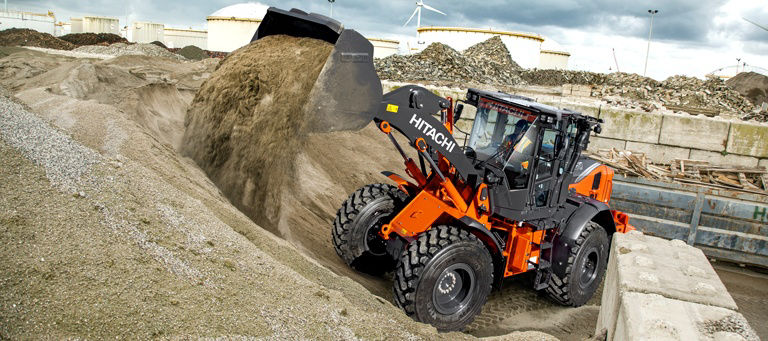

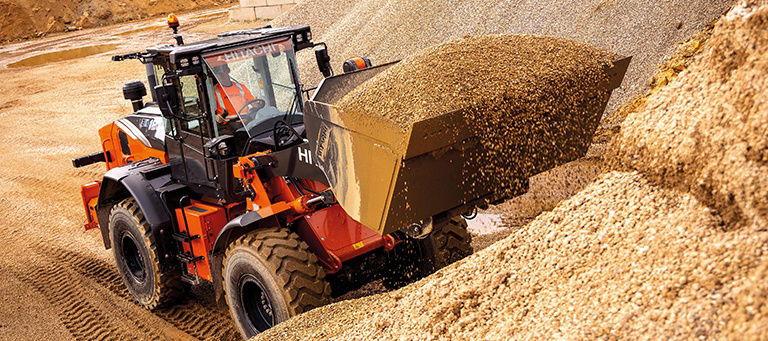

About the ZW160-7

The ZW160-7 is the safest wheel loader in the market thanks to the superb visibility from the cab and intelligent safety-enhancing features including the Aerial Angle camera, and rear obstacle detection and warning systems. It also offers exceptional versatility and can be used on a wide range of applications with three types of lift arms – standard, high and parallel.

Benefits
Discover the benefits
  • A perfect workspace in the state-of-the-art cab with integrated console and seat suspension, reduced noise and low vibration levels.
  • Unrivalled safety and superb all-round visibility due to 270-degree bird’s-eye view, curved engine hood and intelligent systems.
  • Impressive fuel economy and exceptional efficiency.
  • Increased uptime thanks to durable components, intelligent prevention systems and easy maintenance features.
Specifications

Specifications for the ZW160-7

Alle erweitern Alle minimieren
  • MOTOR
Modell CUMMINS B4.5
Typ 4-cycle water-cooled, direct injection
Ansaugung Turbocharger and intercooled
Anzahl Zylinder 4
Maximale Leistung ISO 14396 123 kW / 165 hp
Maximales Drehmoment, brutto 755 Nm at 1 200 min-1 (rpm)
Bohrung und Hub 107 mm X 124 mm
Hubraum 4.46 L
Batterien 2 x 12 V
  • REIFEN
Reifengröße 20.5R25 (L3)
Optional Refer to standard & optional equipment list
  • BREMSEN
Betriebsbremse Inboard mounted fully hydraulic 4 wheel wet disc brakes. Front & rear independent brake circuit, HST (Hydro Static Transmission) system provides additional hydraulic braking capacity.
Feststellbremse Spring applied, hydraulically released, wet disc type
  • LENKUNG
Typ Articulated frame steering
Lenkeinschlag Each direction 40° ; total 80°
Zylinder Double-acting piston type
Anz. x Bohrung x Hub – Stiel 2 x 65 mm x 419 mm
Anz. x Bohrung x Hub – Stiel Arm : 2 x 125 mm x 760 mm Bucket : 1 x 150 mm x 495 mm
  • HYDRAULIKSYSTEM
Hauptpumpe Gear type
Maximaler Durchfluss 194 L/min at 2 200 min-1 (rpm)
Hydraulikzylinder Typ Double acting type
  • ANTRIEBSSTRANG
Getriebe Electrical-controlled 2 motor hydrostatic transmission with summation gear box, Gear box : Fixed gear ratio, powershift countershaft type
Fahrgeschwindigkeit* Vorwärts Rückwärts 1. Gang 13 / 13 km/h (13 / 13 km/h)
Fahrgeschwindigkeit* Vorwärts Rückwärts 2. Gang 13 / 13 km/h (13 / 13 km/h)
Fahrgeschwindigkeit* Vorwärts Rückwärts 3. Gang 20 / 20 km/h (20 / 20 km/h)
Fahrgeschwindigkeit* Vorwärts Rückwärts 4. Gang 39 / 39 km/h (39 / 39 km/h)
  • ACHSE UND HINTERACHSANTRIEB
Antriebssystem Four-wheel drive system
Achspendelwinkel Total 20° (+10° ,-10°)
  • UMWELT
Motoremissionen Complies with EU stage V
Schallpegel in der Kabine gemäß ISO 6396 67 LpA dB(A)
Außenschallpegel gemäß ISO 6395 und EU­Richtlinie 2000 14 EG 104 LwA dB(A)
Klimaanlage The air conditioning system contains fluorinated greenhouse gases. Refrigerant type: HFC-134a, GWP: 1430, Amount: 0.75±0.05kg, CO2e: 1.07±0.07ton.
  • FÜLLMENGEN
Kraftstofftank 205 L
Motorkühlmittel 20 L
Motoröl 16 L
Drehmomentwandler und Getriebe 30 L
Vorderachsdifferenzial und Radnaben 25 L
Hinterachsdifferenzial und Radnaben 25 L
Hydrauliköltank 80 L
DEF AdBlue®-Tank 18 L
  • ABMESSUNGEN
Gesamtlänge (ohne Schaufel) mm 6 420 mm (standard arm) 6 905 mm (High-lift arm)
Gesamthöhe bis Kabinendach mm 3 280 mm
E Bodenfreiheit (mindestens) mm 430 mm
H Wenderadius (Mittellinie des Außenreifens) mm 5 085 mm
H’ Wenderadius (Innenreifen außen) mm 2 870
K Höhe Schaufeldrehbolzen, Maximalhub mm 3 840
L Überschüttbare Höhe Maximalhub mm 3 570 mm (standard arm) 4 055 mm ( High-lift arm)
Statische Kipplast, *gerade kg 10 610 kg (Standard arm) 9 780 kg (High-lift arm)
Reißkraft kN 105 kN 10 690 kgf (Standard arm) 103 kN 10 490 kgf (High-lift arm)
Betriebsgewicht *kg 12 910 kg (standard arm) 13 080 kg (High-lift arm)
  • Spezifikationen
Motornennleistung (kW) 123 kW / 165hp@2.200rpm’s (ISO14396)
Betriebsgewicht (kg) 13 020 kg
Löffel (ISO gehäuft) (m³) 2.00 - 3.60 m3
Attachments
Buckets enhance the performance of your ZW160-7
  • High-quality buckets and robust ground engaging tools (GET) will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application, with quick coupler connections also available.
  • Hitachi GET fit precisely to your attachments and are quick and safe to install and replace.

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.
