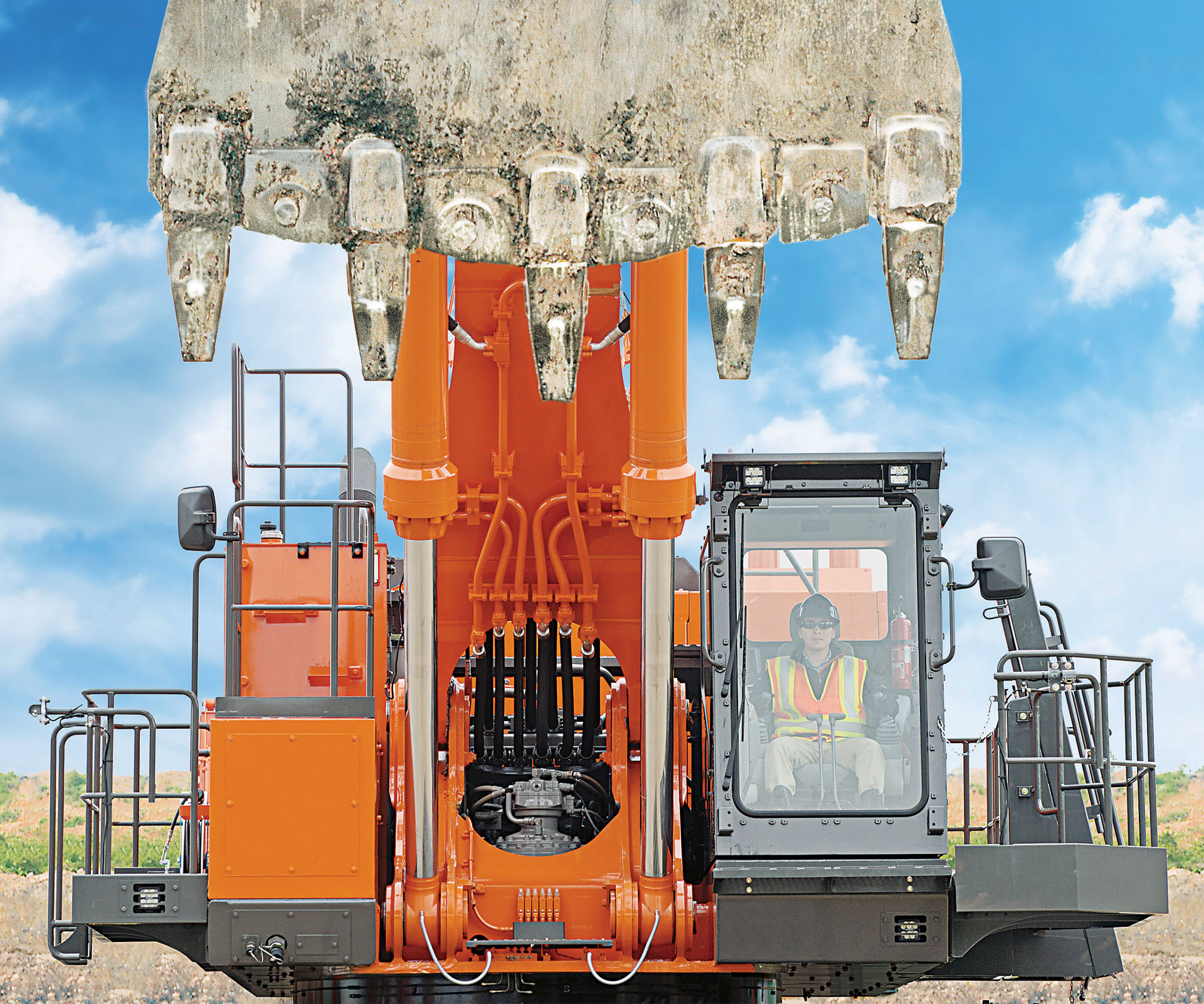

About the EX1200-7

The EX1200-7 is a unique excavator within the Hitachi range, adapting to many different operations. At its core lies clever and complex engineering; on the surface is a beautifully simple, operator-friendly machine. Designed for sustainability Hitachi’s latest energy optimising features provide a sustainable solution for the mining industry. The EX1200-7 includes electronically controlled hydraulic pumps, an optimized cooling package, enhanced hydraulic circuits, and a choice of emission configurations to meet regulatory requirements. The result is an environmentally conscious machine that doesn’t compromise on performance.

Discover the benefits
  • Exceptional fuel efficiency.
  • Reduced life-cycle costs and less environmental impact.
  • Integrated remote operation system, operation support system and autonomous operation function.

Specifications for the EX1200-7 Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model Cummins QSK23-C
Rated power ISO 14396 567.0 kW (760 HP)
Piston displacement 23.15 L
Main pumps 3 variable-displacement, swash plate type axial piston pumps
Maximum oil flow 6 X 335 L/min
  • Attachments
Bucket Capacity (ISO Heaped) 5.9 m3 : Material density 10 000 kg/m3 or less
Bucket Capacity (ISO Heaped) 6.5 m3 : Material density 1 800 kg/m3 or less
Bucket Capacity (ISO Heaped) 5.2 m3 : Material density 1 800 kg/m3 or less
Bucket Capacity (ISO Heaped) 7.0 m3 : Material density 1 800 kg/m3 or less
  • Weights and Ground pressure (Loading Shovel)
Shoe type Loading Shovel
Shoe width 800 mm
Operating weight 194 000 kg
Ground pressure 187 kPa (1.90 kgf/cm3 )
  • Weights and Ground pressure (Backhoe)
Shoe type Backhoe
Shoe width 700 mm
Operating weight 115 000 kg
Ground pressure 145 kPa (1.91 kgf/cm3)
  • Working ranges
Max. digging force 9k 13 490 mm
Max. dumping height 8 750 mm
Max. digging depth 7 960 - 9 260 mm
  • Dimensions
Undercarriage width 6 500 mm
Overall width of upperstructure 5 410 mm
  • Specifications
Engine Rated Power (kW) 567.0 kW (760 HP)
Operating weight (kg) 117 000 kg
Backhoe Bucket ISO Heaped 7.00 m³
Max. digging depth (mm) 7 960 - 9 260 mm
