Medium Excavators

ZX135US-7B

The highly versatile ZX135US-7 medium crawler excavator, has now been updated to ZX135US-7B. Equipped with a Stage-V compliant Isuzu engine, similarly to most Zaxis -7 excavators, it offers easier service and efficient maintenance.

Engine Rated Power (kW): 74 kW (ISO14396)
Operating weight (kg): 14 300 - 16 600 kg
Backhoe Bucket ISO Heaped: 0.19 - 0.66 m3
Available in: Europe

The highly versatile ZX135US-7 medium crawler excavator, has now been updated to ZX135US-7B. Equipped with a Stage-V compliant Isuzu engine, similarly to most Zaxis -7 excavators, it offers easier service and efficient maintenance.

Quotation Request
Find A Dealer
Compare Model
Overview

About the ZX135US-7B

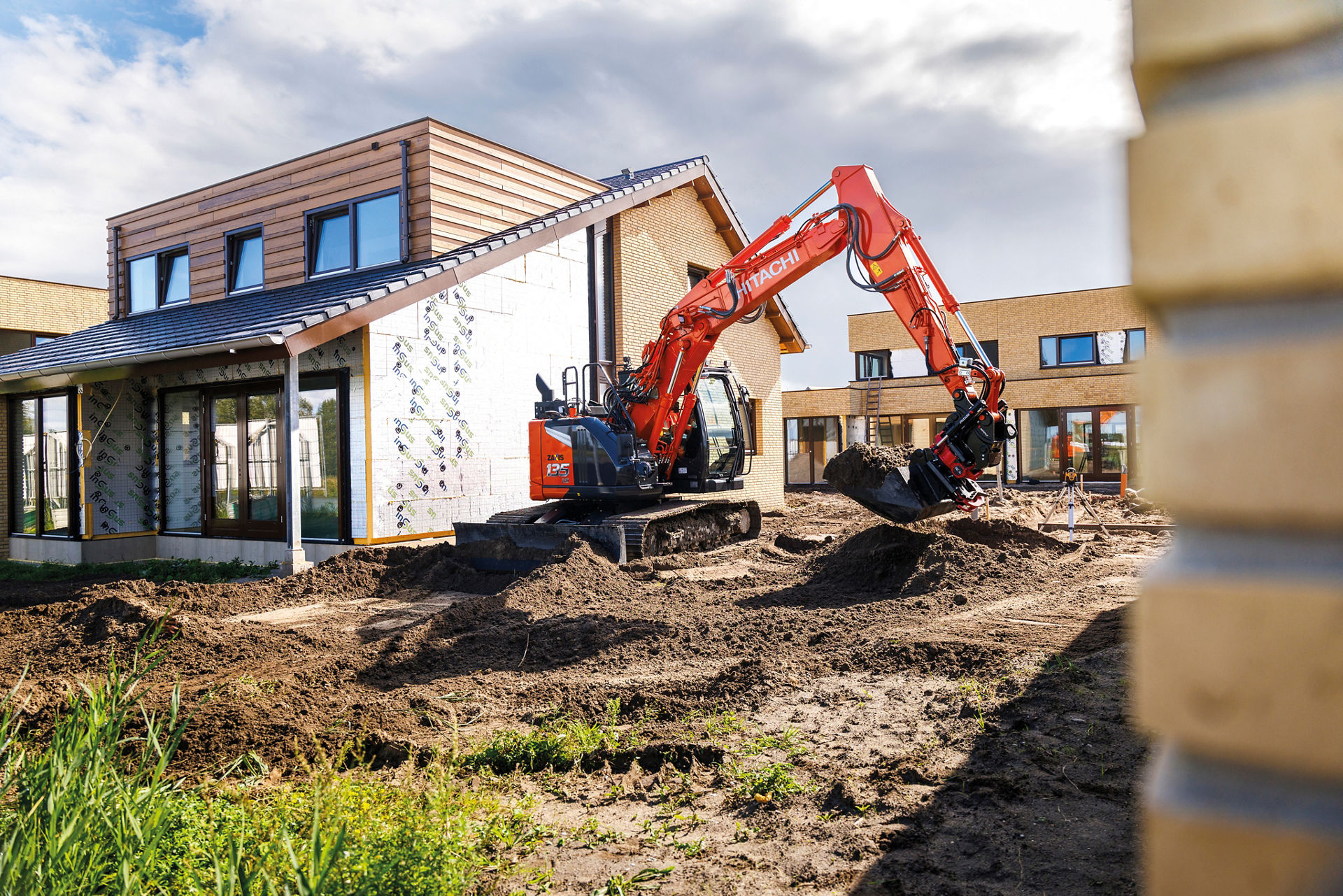

The short-tail swing radius of ZX135US-7B, makes it ideal for job sites where space is limited. The updated model is even more

powerful so you can feel assured of your machine's performance.

With an enlarged interior and wider door opening, the industry-leading cab provides the perfect workspace.

Benefits

Discover the benefits

  • Homogeinity of engine suppliers reduces complexity of handling engines and makes service more efficient.
  • Improved performance due to higher engine output.
  • Exceptional comfort in the cab with integrated console and seat suspension, reduced noise and low vibration levels.
Download Brochure
Specifications

Specifications for the ZX135-7B Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model ISUZU 4JJ1
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment DOC+CSF+SCR system
No. of cylinders 4
Rated power ISO 14396 74.9 kW at 2 000 min-1
Maximum torque 375 Nm at 1 800 min-1
Main pumps 2 variable displacement axial piston pumps
Maximum oil flow 2 x 117 L/min
Pilot pump 1 gear pump
  • Bucket and arm digging force
Bucket digging force ISO 104 kN
Arm crowd force ISO 61 / 69/ 77 kN
  • Operating weight and ground pressure
Shoe type Triple grouser
Shoe width 500 / 600 / 700 mm
Arm length 2.10 / 2.52 / 3.01 m
Monoblock weight 1 440 - 1 600 kg
Monoblock pressure 33-49 kPa
2-Piece weight 14 900 – 16 600kg
2-Piece pressure 34-51 kPa
  • Working ranges
Max. digging reach 8 000 - 8 850 mm
Max. digging depth 4 840 - 5 980 mm
Max. dumping height 6 550 - 7 450 mm
  • Dimensions
Undercarriage length 3580 mm
Undercarriage width 2490 mm
Overall width of upper structure 2480 mm
Overall height of cab 2790 mm
  • Specifications
Engine Rated Power (kW) 74 kW (ISO14396)
Operating weight (kg) 14 300 - 16 600 kg
Backhoe Bucket ISO Heaped 0.19 - 0.66 m3
Download Brochure
Attachments

Attachments enhance the performance of your ZX135US-7B

  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.
Download Brochure

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.

Find out more about Hitachi Premium Rental

Want to find out more?

For more information on the new Hitachi machinery, the Hitachi Premium Rental programme, or to discuss your needs in more detail, please fill out the form.



One of our specialists will contact you within a couple of days of your enquiry.
