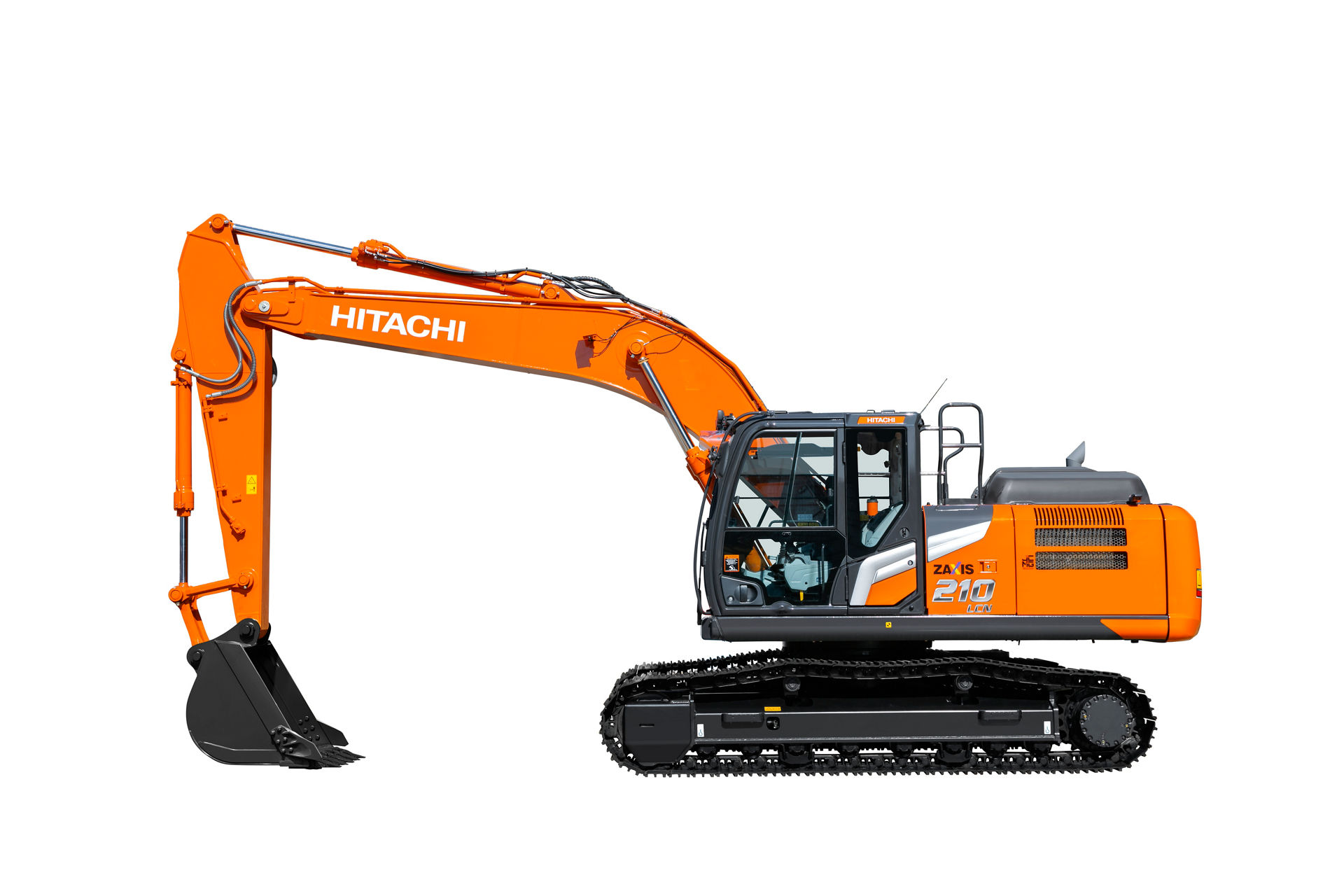

About the ZX210-7

You can work on a wide range of projects with the new Hitachi ZX210-7 medium excavator. Choose from a variety of specifications to meet the requirements of any job site, including mono or two-piece boom, and long and narrow undercarriage options for optimal stability or easy transportation.

Discover the benefits
  • Up to 11% reduced fuel consumption compared to previous models.
  • Enhanced efficiency due to Hitachi’s industry-leading hydraulic system, TRIAS III.
  • Exceptional visibility with 270-degree bird’s-eye view from the cab.
  • Improved comfort with integrated console and seat suspension, reduced noise and low vibration levels.

Specifications for the ZX210LC-7 / ZX210LCN-7 Excavators

Expand all Collapse all
  • Engine & hydraulic system
Engine Model Isuzu 4HK1
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment DOC+CSF+SCR
No. of cylinders 4
Rated power ISO 14396 128.4 kW at 2 000 min-1
Maximum torque 670 Nm at 1 600 min-1
Main pumps 3 variable displacement axial piston pumps
Maximum oil flow 2 x 212 L/min
Pilot pump 1 gear pump
Maximum oil flow pilot pump 33.7 L/min
  • Bucket and arm digging force
Bucket digging force ISO 6015 2006 158 kN
Arm crowd force ISO 6015 2006 140 kN
  • Operating weight and ground pressure
Shoe type Triple grouser
Shoe width 500 – 900mm
Arm length 2.42 - 2.91 m
Monoblock weight 2 310kg
2-Piece weight 2 990kg
  • Working ranges
Arm length 2.42 - 2.91 m
Max. digging reach 9 430 - 9 930 mm
Max. digging depth 6 180 - 6 230 mm
Max. dumping height 6 830 - 8 150 mm
  • Dimensions
Undercarriage length 4 450mm
Undercarriage width 2 990mm
Overall width of upperstructure 2 700mm
Overall height of cab 2 950mm
Overall width 2 990mm
  • Specifications
Engine Rated Power (kW) 128.4 kW (ISO14396)
Operating weight (kg) 21 900 - 23 900 kg
Backhoe Bucket ISO Heaped 0.51 - 1.20 m3
Max. digging depth (mm) 6 180 - 6 230 mm
Attachments enhance the performance of your ZX210-7
  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.
