Overview
About the ZX85-6

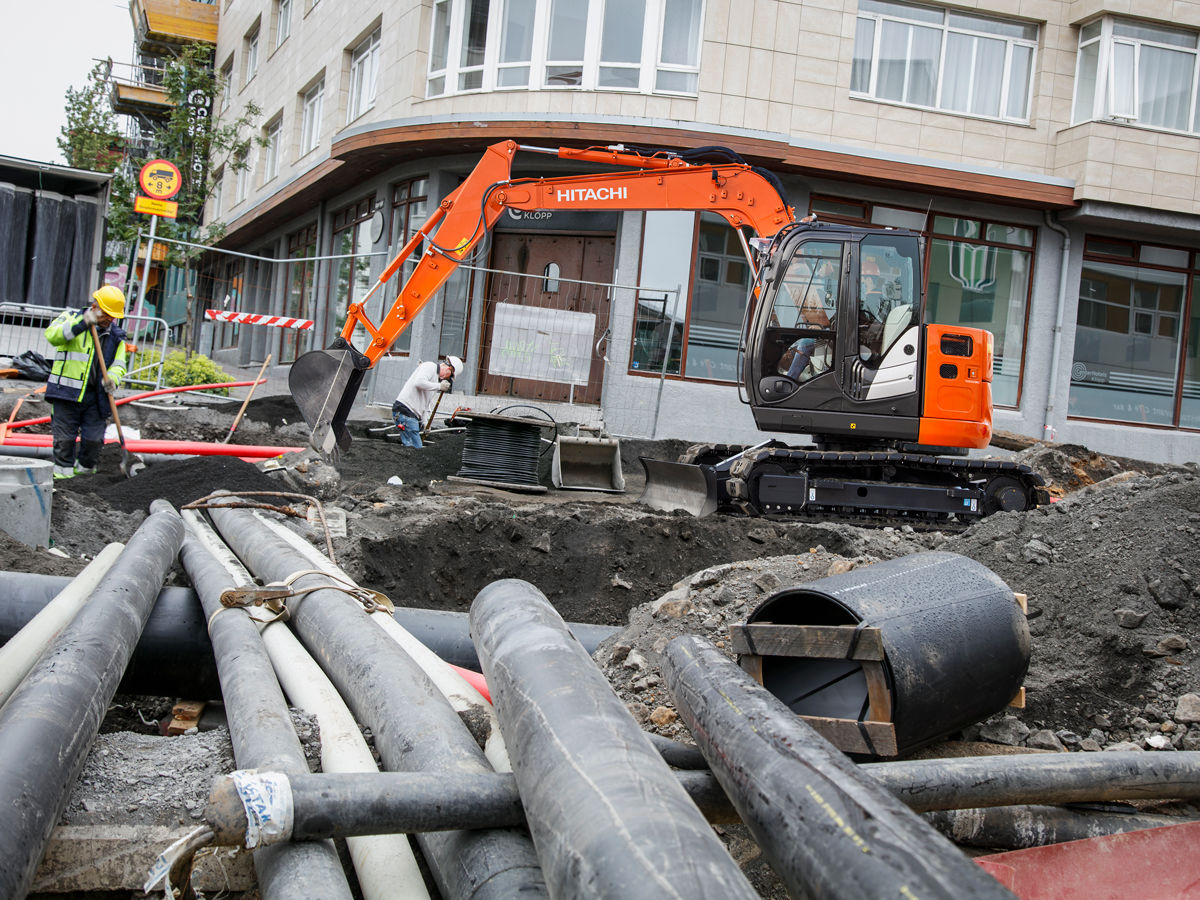

One of the largest models in the Hitachi compact excavator range, the ZX85US(B)-6 is equipped with a powerful 42.4 kW Stage V-compliant engine and muffler filter after-treatment device to reduce emissions.

Ideal for a wide variety of projects, including rental, utilities, foundation work, landscaping, and indoor demolition and construction, it offers exceptional stability and comfort, and is easy to maintain.

Benefits
Discover the benefits
  • The ECO mode and auto idle features significantly reduce fuel consumption and noise levels.
  • Quick cycle time and efficient hydraulics ensure high productivity.
  • The ZX85US(B)-6 is equipped with a powerful 42.4 kW Stage V-compliant engine.
  • The heated air suspension seat is ideal in cold climates and absorbs vibration during operation which minimises operator fatigue.
Specifications

Specifications for the ZX85-7 Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model 4TNV98C
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Coold EGR
Aftertreatment Muffler filter
No. of cylinders 4
Piston displacement 3.318 L
Rated power ISO 14396 42.4 kW
Maximum torque 233.4 Nm at 1 300 min-1
Main pumps 3 variable displacement axial piston pumps
Maximum oil flow 2 x 72 L/min, 1 x 56 L/min
Pilot pump 1 gear pump
Maximum oil flow pilot pump 20.0 L/min.
  • Bucket and arm digging force
Bucket digging force ISO 104kN
Arm crowd force ISO 32.0 - 38.0 kN
  • Operating weight and ground pressure
Arm length 1.62 - 2.12 m
  • Specifications
Operating weight (kg) 8 140 - 9 060 kg
Backhoe Bucket ISO Heaped 0.28 m3
Attachments
Attachments enhance the performance of your ZX85-7
  • The optional auxiliary function lever with proportional switch allows for excellent control and is useful for hydraulic breaker attachments.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.
