Overview

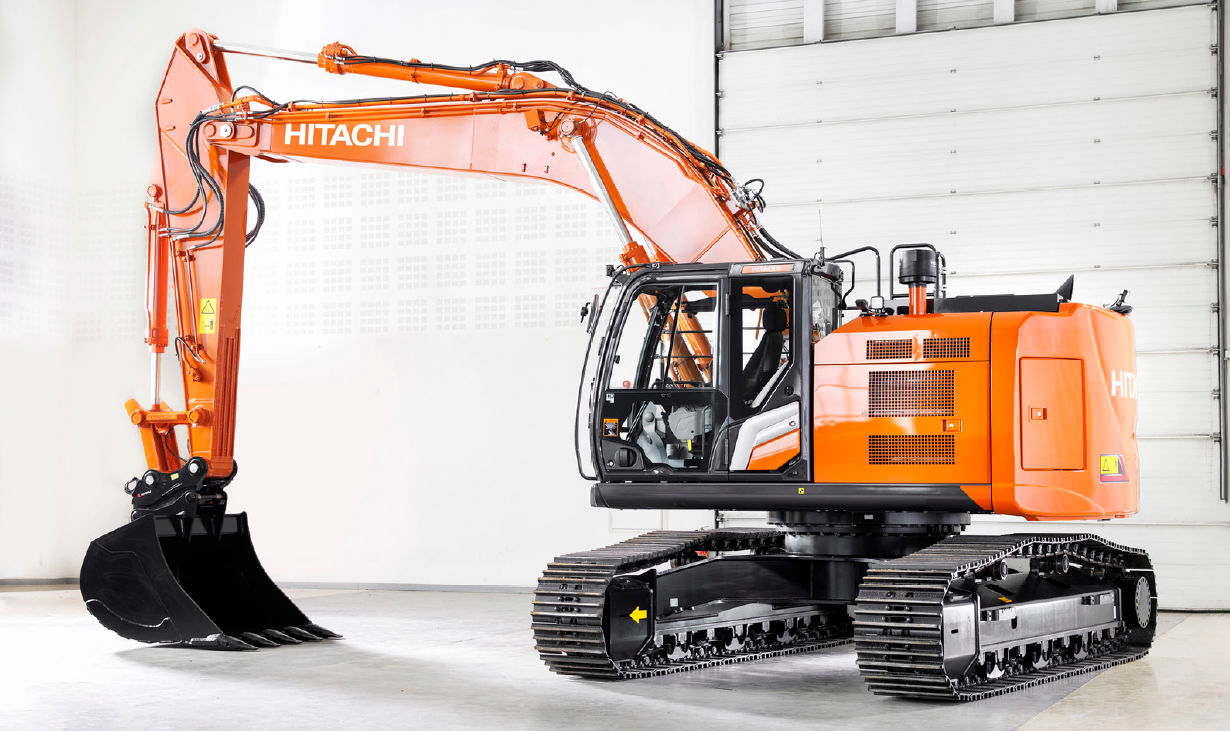

About the ZX375US-7

The ZX375USLC-7 is the newest addition and largest machine of our ultra short-tail swing line-up, ideal for confined environments where heavy-duty lifting is required.

Equipped with Hitachi’s market-leading TRIAS hydraulic system, this machine offers exceptional hydraulic power, unmatched controllability, and enhanced fuel efficiency, ensuring superior performance on any job site.

Specifications

Specifications for the ZX375US-7 Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model Isuzu 6HK1X
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment DOC + CSF + SCR system
No. of cylinders 6
Rated power ISO 14396 197 kW at 1900 min-1
Maximum torque 1 050 Nm at 1 500 min-1
Main pumps 3 variable displacement axial piston pumps
Maximum oil flow 2 x 236 L/min / 1 x 211 L/min
Pilot pump 1 gear pump
Maximum oil flow pilot pump 36.9 L/min
  • Bucket and arm digging force
Bucket digging force ISO 158 kN
Arm crowd force ISO 202 kN
  • Operating weight and ground pressure
Shoe type Triple grouser
Shoe width 600 mm
Arm length 3.11 m
  • Working ranges
Max. digging reach 10 900 mm
Max. digging depth 6 920 mm
Max. dumping height 8 380 mm
  • Dimensions
Undercarriage length 4 970mm
Undercarriage width 3 190 mm
Overall width of upper structure 3 050 mm
Overall height of cab 3 150 mm
Overall width 3 190 mm
  • Specifications
Engine Rated Power (kW) 197 kW (ISO14396)
Operating Weight 35 600 kg
Backhoe Bucket ISO Heaped 1.00 - 1.62 m3
