Benefiits
Discover the benefits
  • Up to 10% reduced fuel consumption compared to previous models.
  • Enhanced efficiency due to Hitachi’s industry-leading hydraulic system, TRIAS III.
  • Improved comfort in the cab with integrated console and seat suspension, lowest noise levels in the market and 20% less vibration than previous models.
  • Increased safety thanks to superior visibility and 270-degree bird’s-eye view from the cab.
Specifications

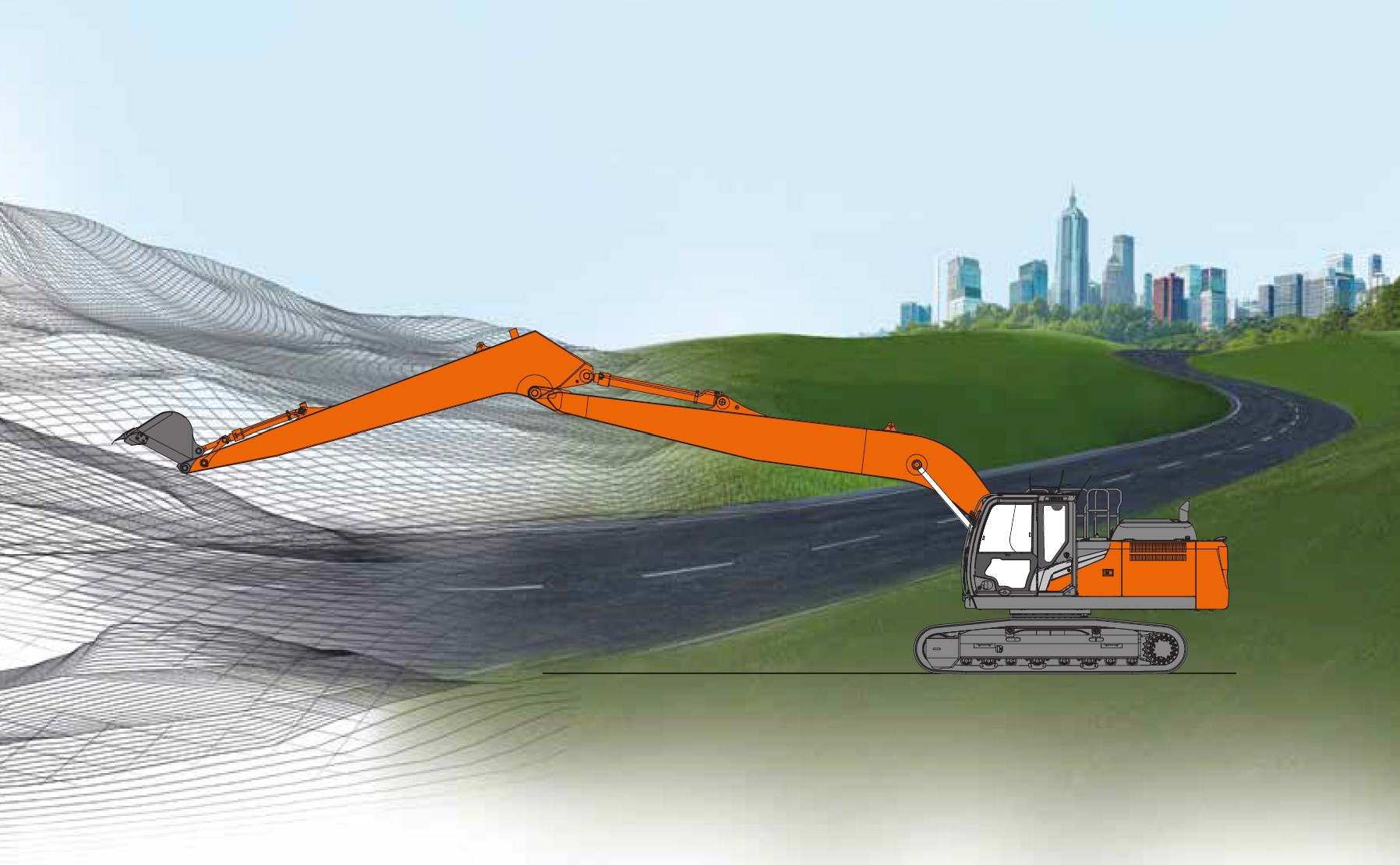

Specifications for the ZX-7 super long front excavators

Expand all Collapse all
  • Engine & hydraulic system
Engine Model Isuzu 6WG1
Engine emissions EU Stage V
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment DOC, CSF and SCR system
No. of cylinders 6
Piston displacement 15.681 L
Pilot pump 1 gear pump
Maxium oil flow pilot pump 30.0 L/min
  • Bucket and arm digging force
Bucket digging force ISO 178 kN
Arm crowd force ISO 124 kN
  • Weights and ground pressure
Shoe grouser type triple
Shoe width 600 / 750 / 900 mm
Operating weight 51 500 - 52 900 kg
Ground pressure 59 - 86 kPa
  • Working ranges
Arm length 6.4 m
Max. digging reach 16 570 mm
Max. digging depth 11 910 mm
Max. dumping height 2 730 mm
  • Dimensions
Undercarriage length 5 470 mm
Overall width of upperstructure 3 480 mm
Overall height of cab 3 330 mm
  • Top Features
Engine Rated Power (kW) 296 kW (ISO14396)
Operating weight (kg) 51 500 - 52 900 kg
Max. digging reach (mm) 16 570
Attachments
Attachments enhance the performance of your ZX-7 excavator
  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.
