Specifications

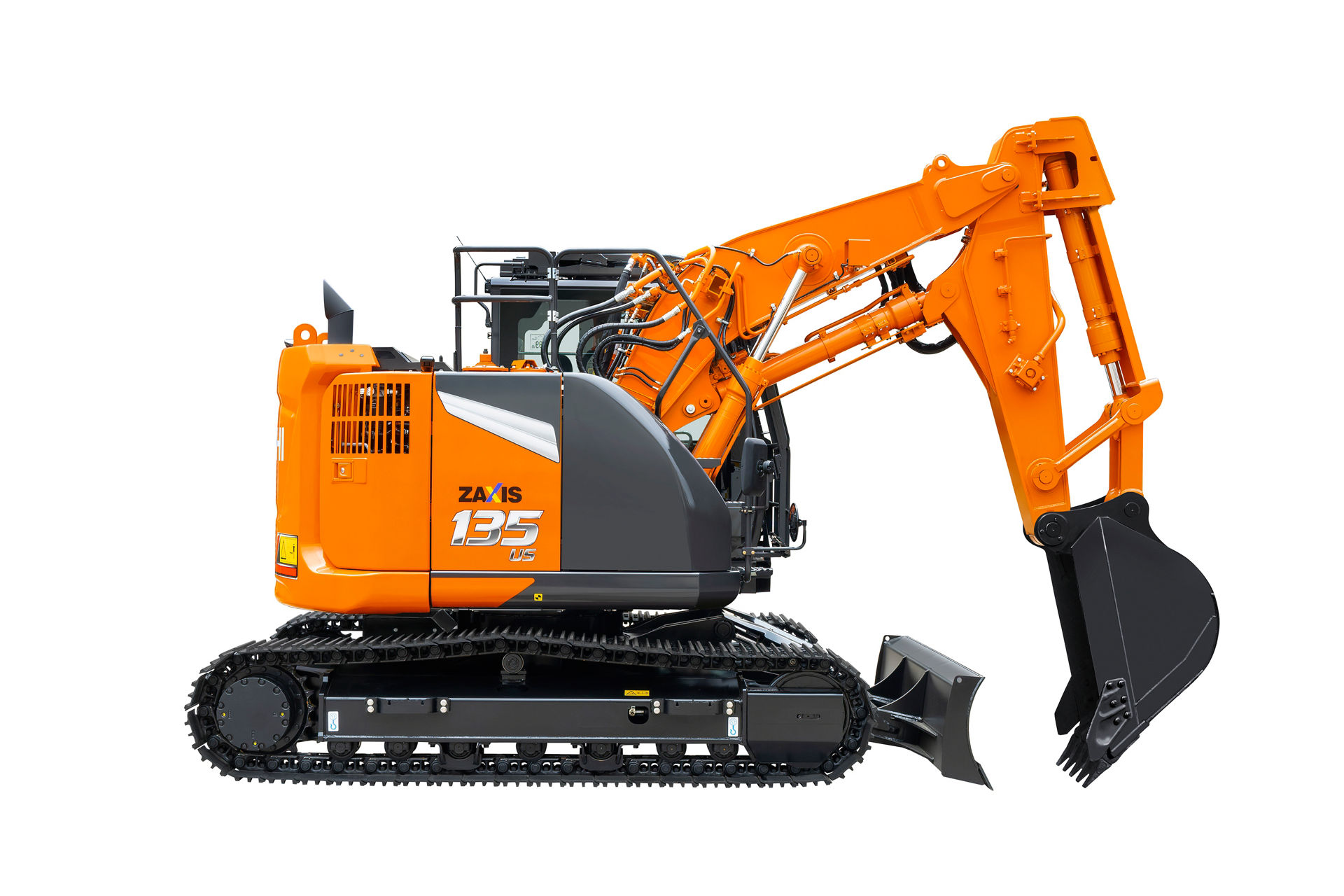

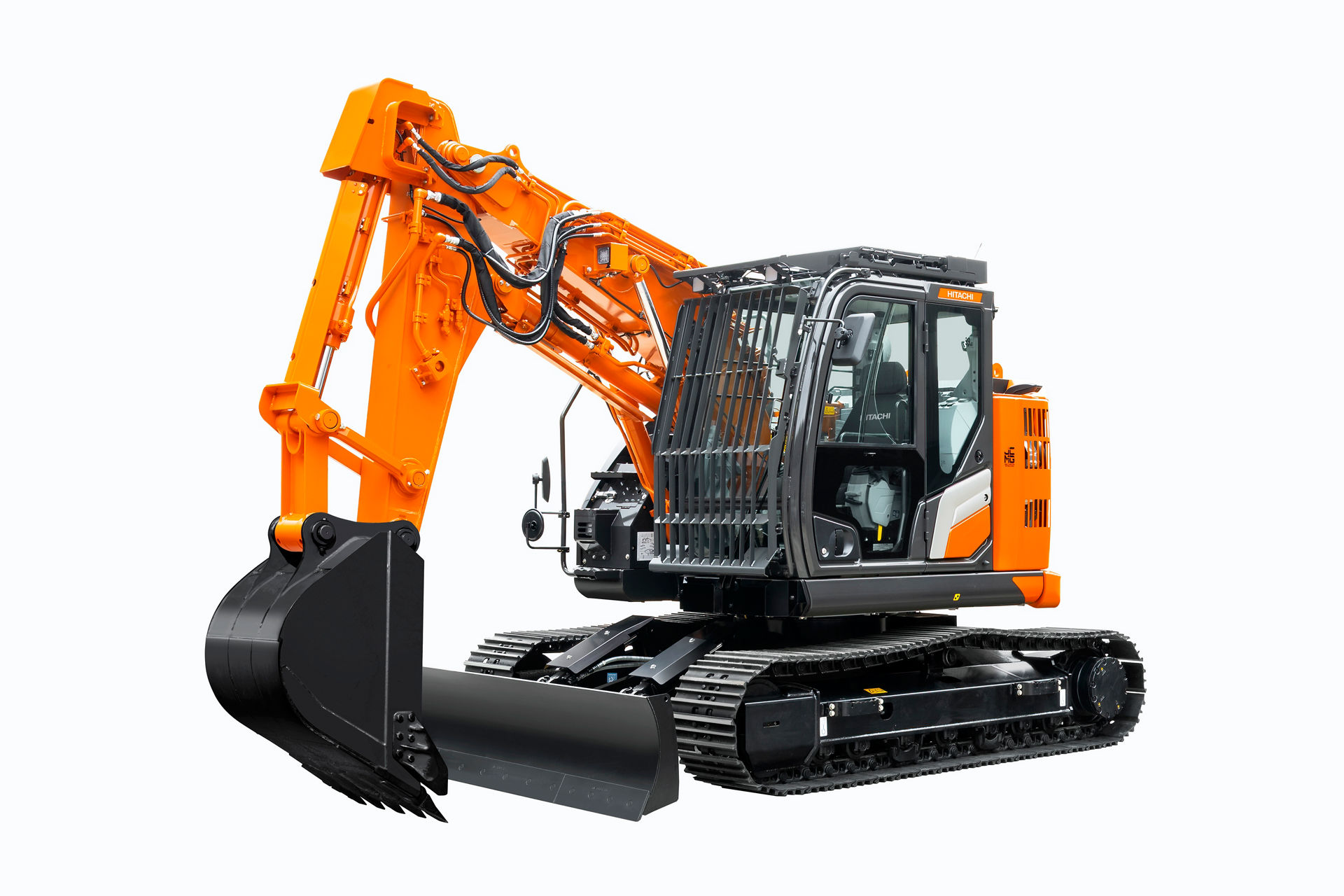

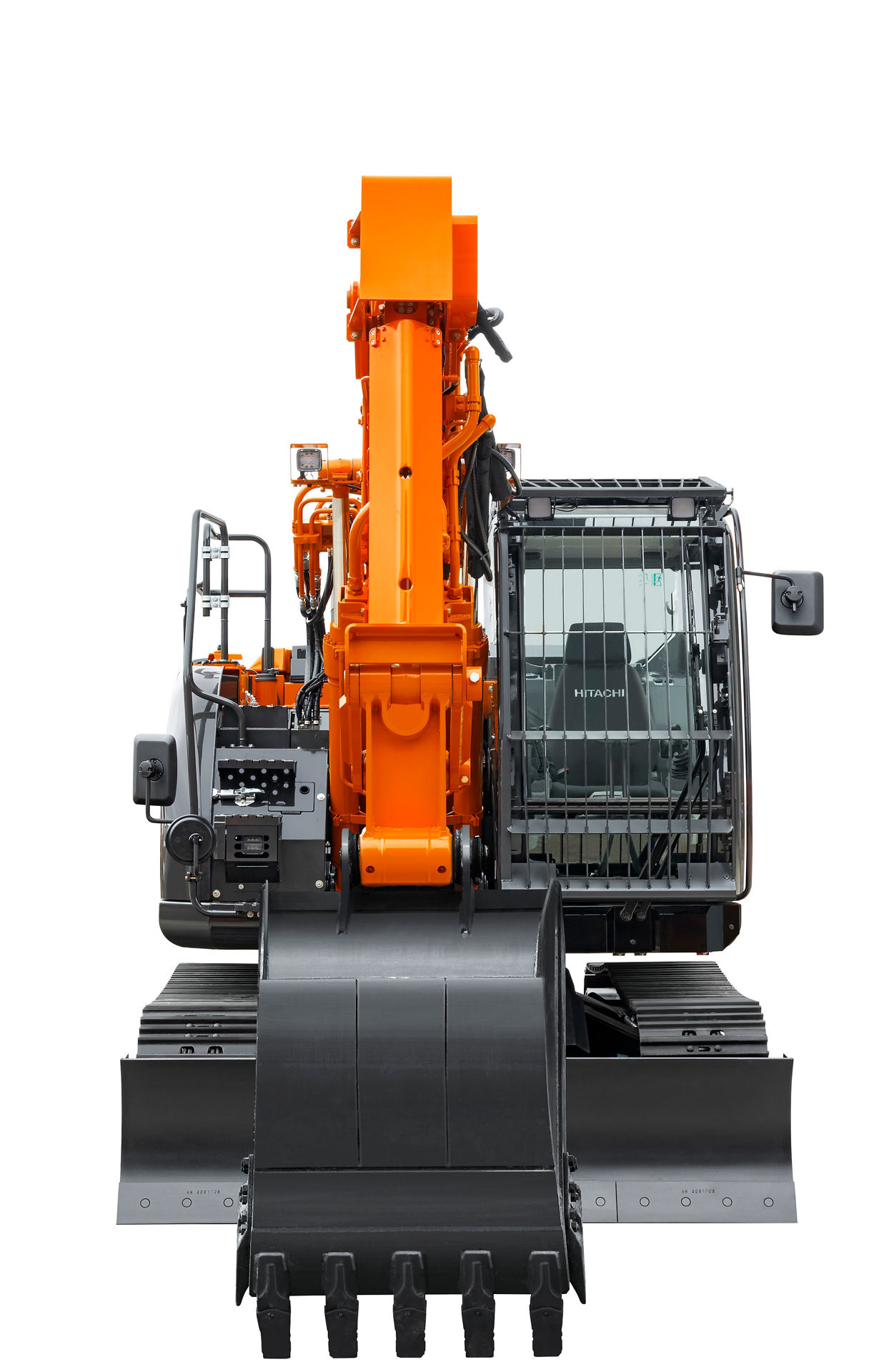

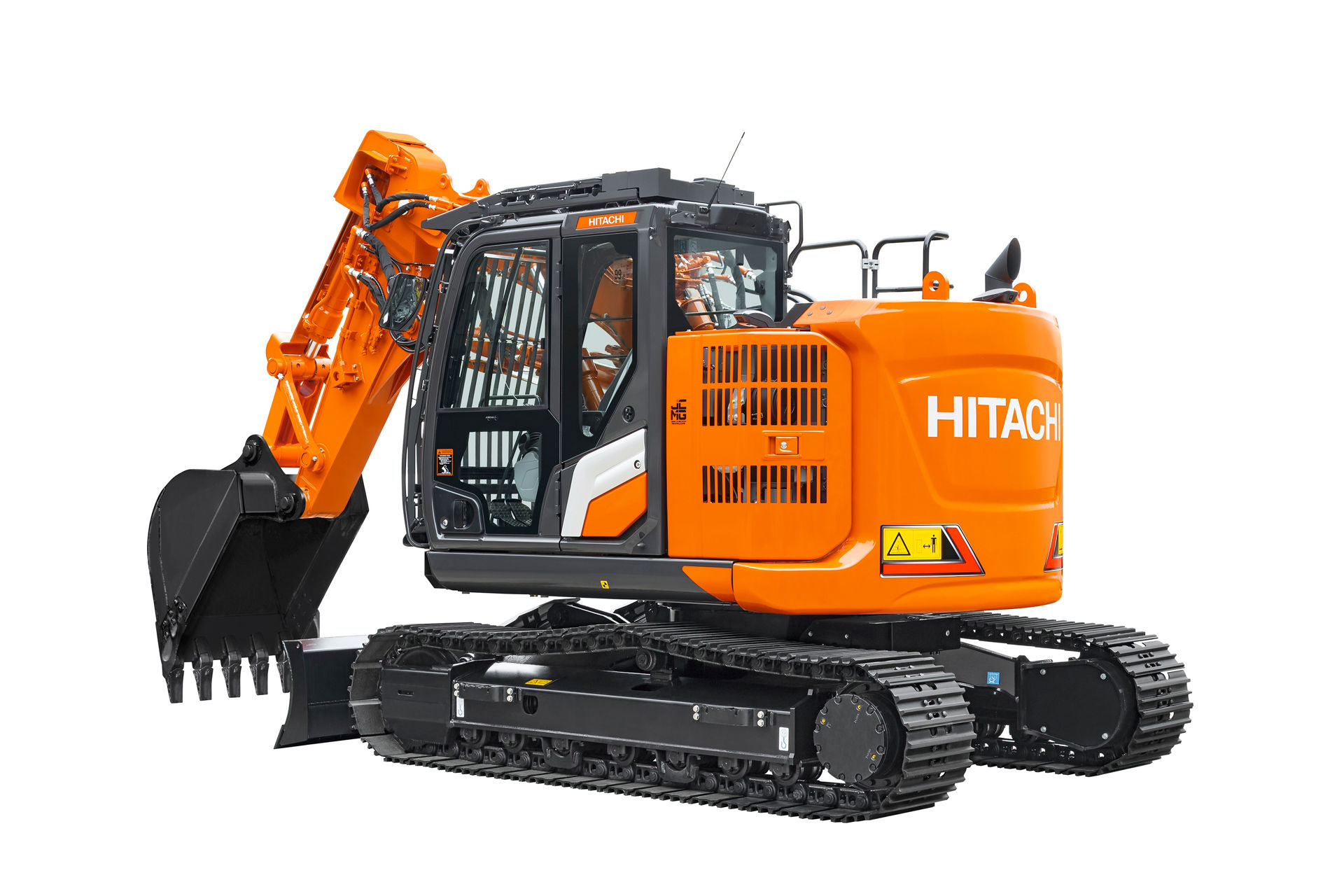

Specifications for the ZX135US-7 Short Reach Front excavators

Expand all Collapse all
  • Engine & hydraulic system
Engine Model TOYOTA INDUSTRIES CORPORATION 1KDE
Engine emissions EU Stage V
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment DOC+CSF system
No. of cylinders 4
Piston displacement 2.982 L
Pilot pump 1 gear pump
Maxium oil flow pilot pump 33.6 L/min
  • Hydraulic system
Main pump 2 variable displacement axial piston pumps
  • Bucket and arm digging force
Bucket digging force ISO 162 kN
Arm crowd force ISO 75 kN
  • Weights and ground pressure
Shoe grouser type Triple
Shoe width 500 / 600 / 700
Operating weight 16 200 - 17 800 kg
  • Working ranges
Arm length 2.05 m
Max. digging reach 6 390 mm
Max. digging depth 2 640 mm
Max. dumping height 5 260 mm
  • Dimensions
Undercarriage length 3 580 mm
Overall width of upperstructure 2 480 mm
Overall height of cab 2 940 mm
  • Top Features
Engine Rated Power (kW) 74 kW (ISO14396)
Operating weight (kg) 16 200 - 17 800 kg
  • Specifications
Max. digging reach (mm) 6 390 mm
