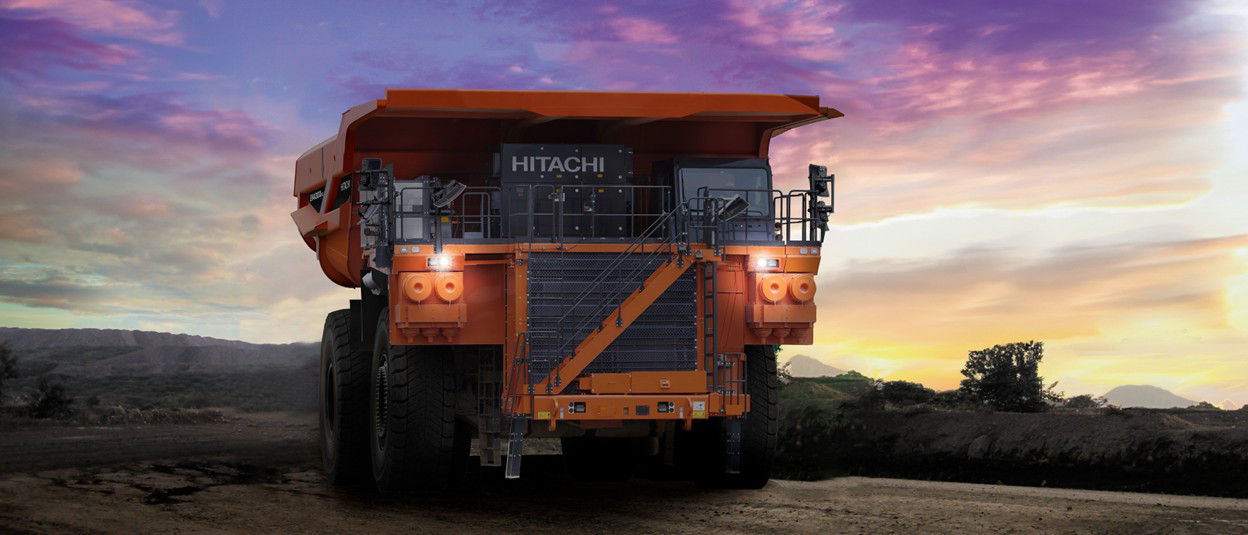

Rigid Dump Trucks EH4000AC-5

This machine will change your mine site



Nominal Payload: 242 tonnes (267 tons)
Gross machine operating weight (kg): 422 tonnes (465 tons)
Engine Rated Power (kW): Standard: 1 864 kW (2 534 PS , 2 500 HP)　Option: 2 013 kW (2 738 PS , 2 700 HP)

This machine will change your mine site



Contact Your Dealer
Compare Model

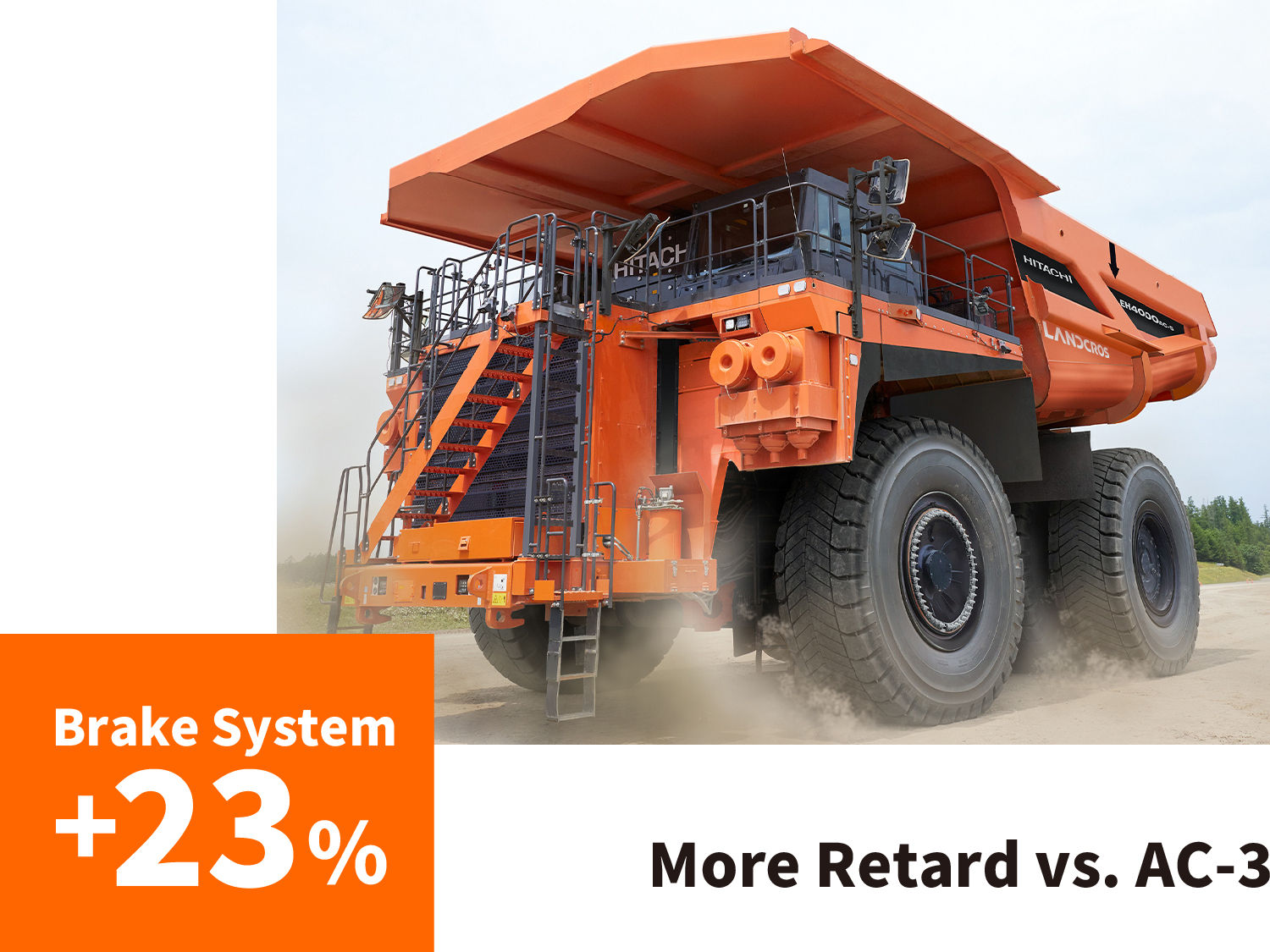

Brake System

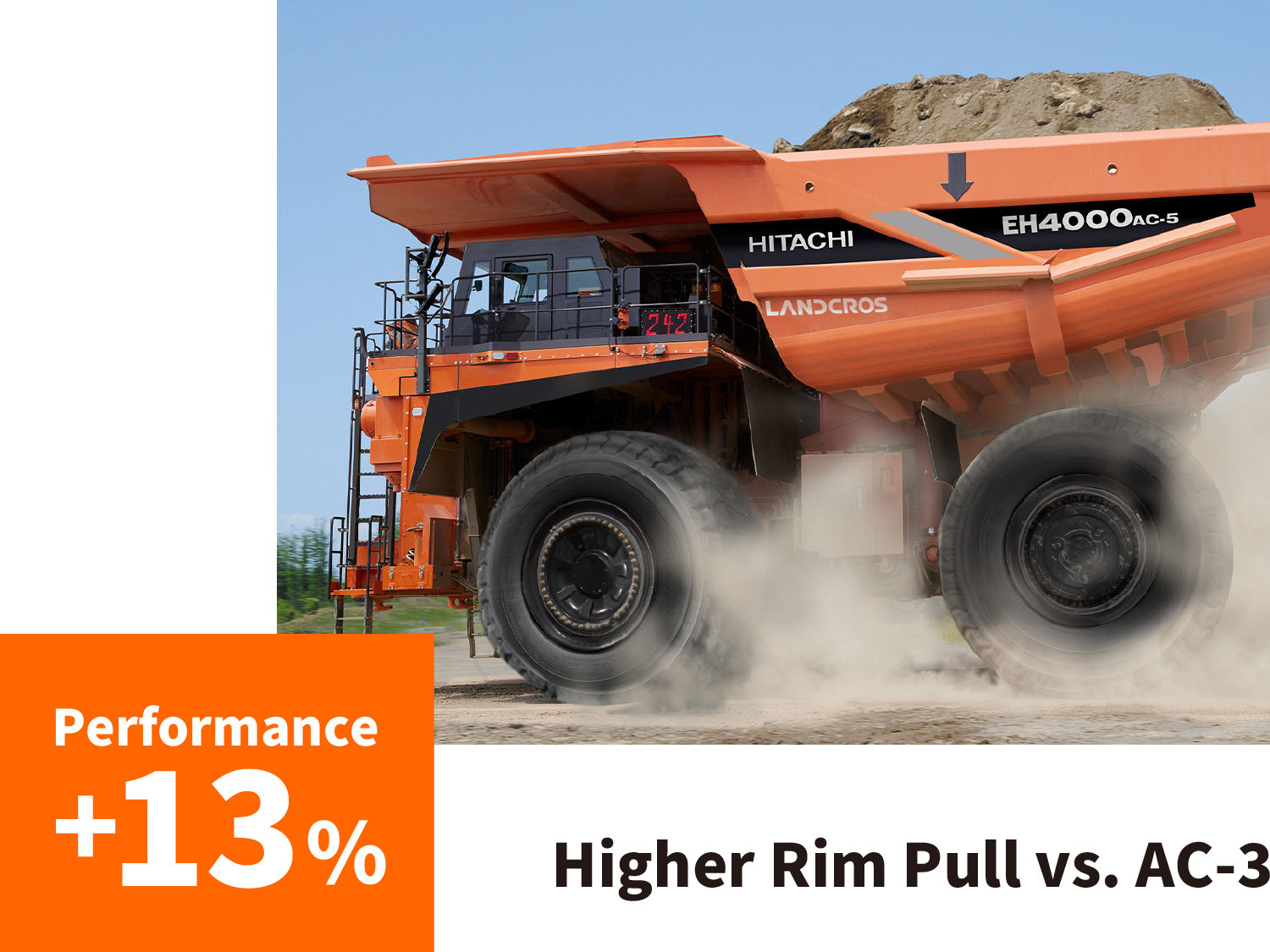

Performance

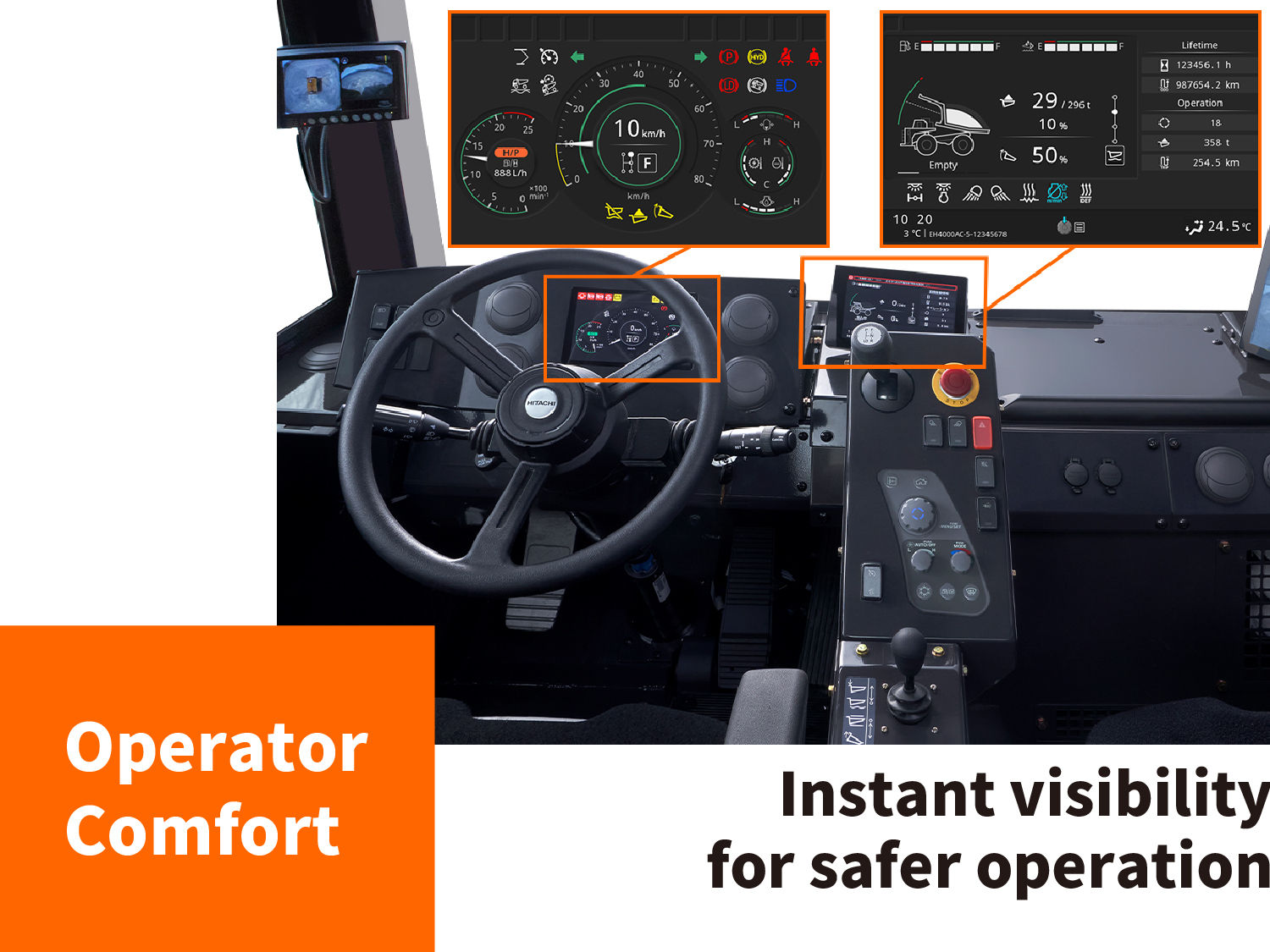

Operator Comfort

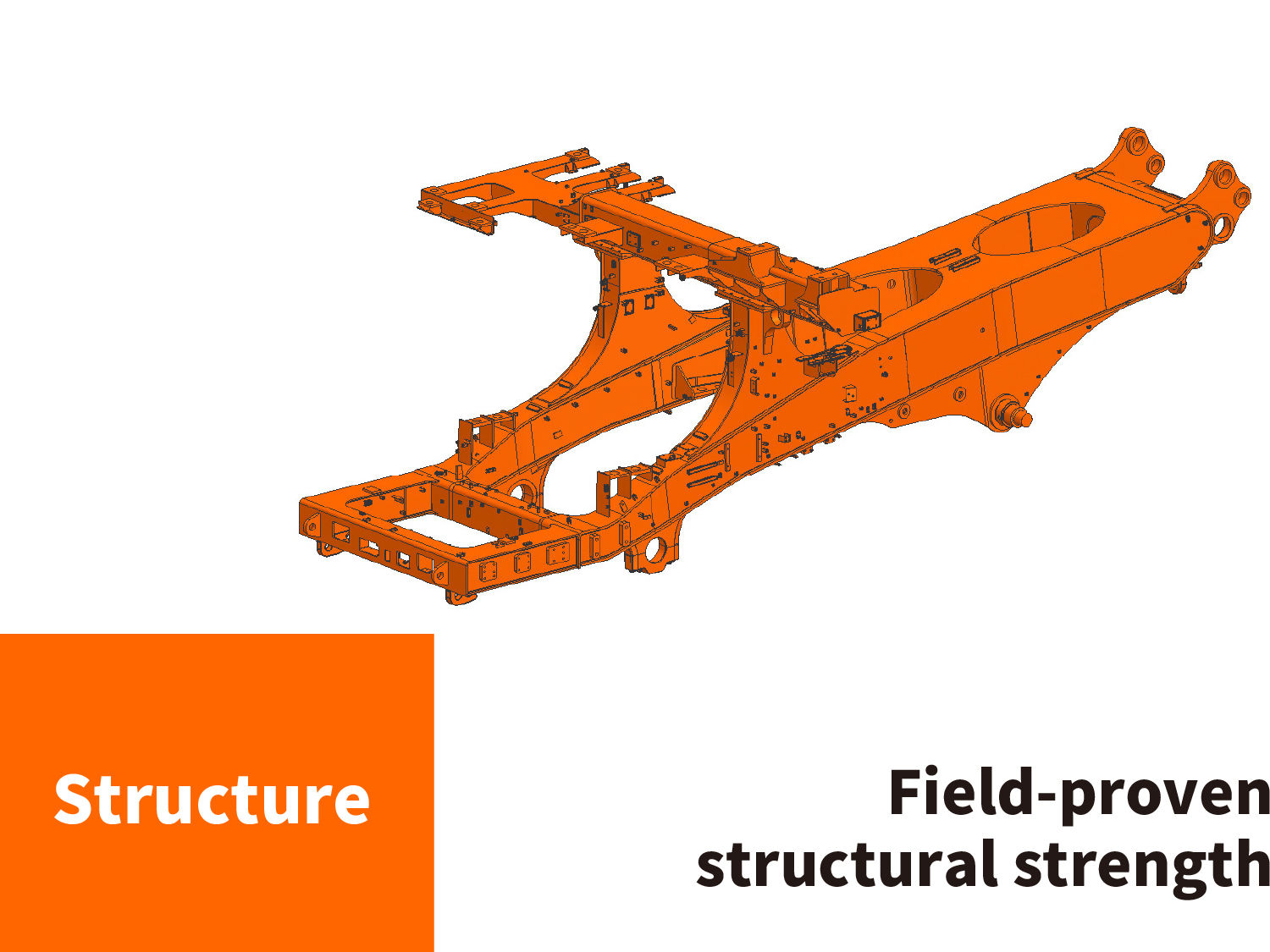

Structure

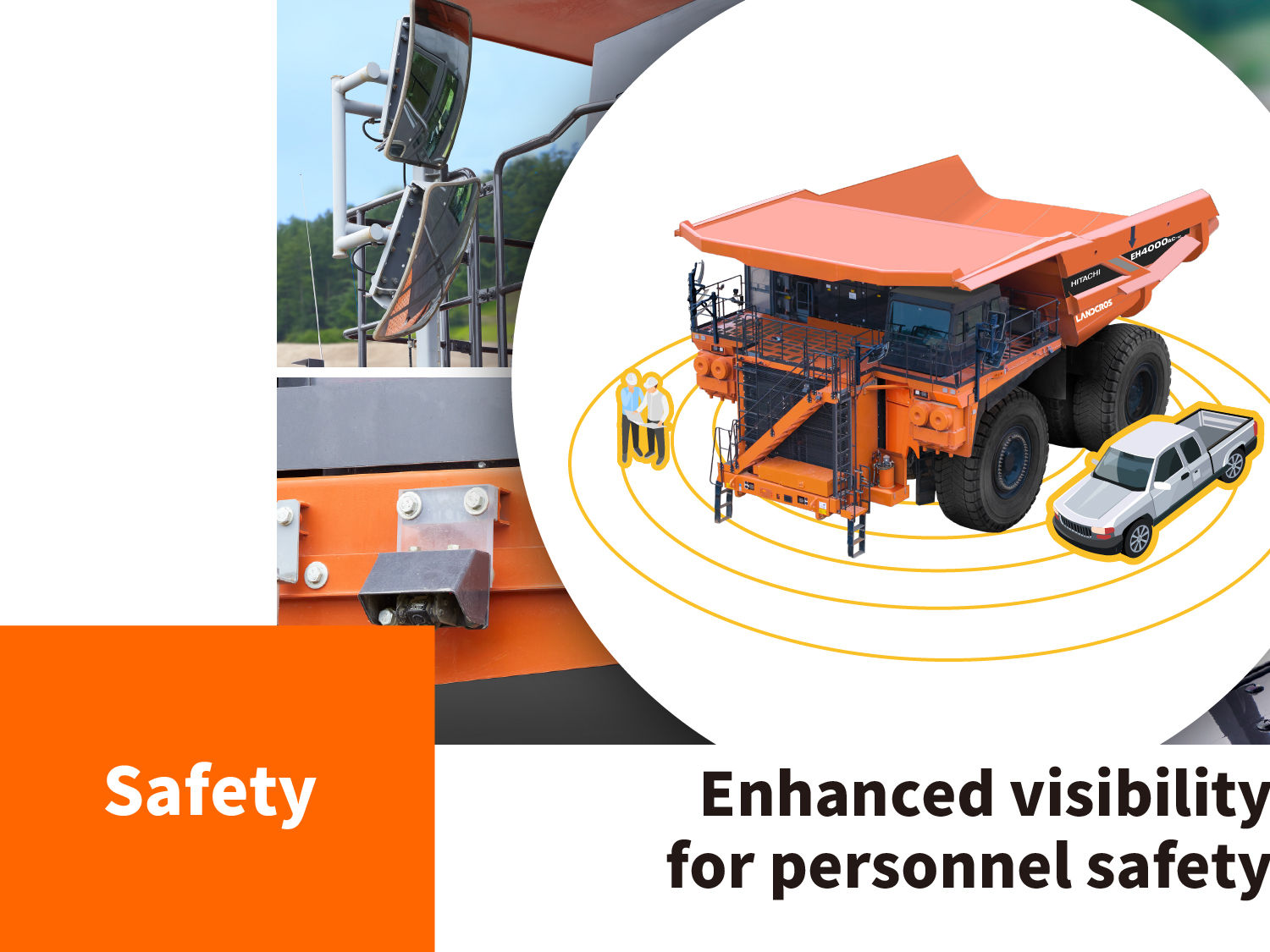

Safety
Brake System || true
Performance || true
Operator Comfort || true
Structure || true
Safety || true
Benefit

Benefit

The EH4000AC-5 offers high hauling capability through a combination of high-speed transport, strong torque output, and enhanced structural durability.
It is designed to help reduce cycle times, improve fleet efficiency, and support stable operations across a wide range of site conditions.

Specification

Specification

Expand all Collapse all
  • Engine
Engine Model Cummins QSKTA60-CE
Emission Certification Fuel consumption optimized
Rated Power(@1900 min-1 (rpm)) ISO 14396 1 864 kW　(2 534 PS , 2 500 HP)
No. of cylinders 16
Bore and stroke 159 × 190 mm
Displacement 60
  • Electric Drive
Planetary Ratio 35.3 : 1
Maximum Speed (Continuous) 65 km (Continuous 40 mph)
  • Tires
Tire size 50/80R57 (standard)
Rim Width 29 ich (STD)　32 ich (OPT)
  • Body Capacities
Struck (SAE) 147 ㎥　(192 cu. yd.)
Heaped 2 1 (SAE) 187 ㎥　(245 cu. yd.)　[Note : Body capacity and payload subject to change based on customer specific material density and application.]
  • Steering system
Steering Steering system complies with ISO5010
Turning Diameter (ISO 7457) 27.4 m (90 ft)
  • Hydraulic system
Body Raise Time 19.0 sec
Body Down Time (Float) 20.0 sec
  • Brakes
Service brakes Service braking for the EH4000AC-5 is made up of front and rear hydraulically applied brakes and the electric brake.
Front Axle Oil-cooled, multiple disc
Rear Axle Oil-cooled, multiple disc
Secondary Complies with ISO 3450 (SAE J1473)
Parking brakes Spring applied, hydraulically released brake calipers.
Electric Brake Maximum dynamic braking (Standard) : 3 500 kw (4 759 PS , 4 694 HP)
  • Weights (Approximate)
Chassis with Hoist & Body Parts 153 500 kg　(338 409 lb.)
Body Excluding Body Parts 26 500 kg　(58 422 lb.)　[Note: Body Parts - Include:mud guards, body pads, rock ejector bars, arm guard, fasteners.etc]
Net Machine Weight 180 000 kg　(396 832 lb)　[Note: Net Machine Weight - Include:Operator,100% duel,with standard equipment.]
Nominal Payload 242 tonnes　(267 tons)　[Note: The Nominal Payload specification is calculated using the Hitachi Loading Policy. Specific job site requirements may result in an adjustment to the Nominal Payload weight. Consult your Hitachi dealer for a truck configulation which will match your haulage application.]
Weight Distribution (Empty) Front 54%　Rear 46%
Weight Distribution (Loaded) Front 35%　Rear 65%
  • Cab
HI-TEC ROPS FOPS Cab ROPS complies with ISO3471 and SAE J1040-May 94, FOPS complies with ISO3449.
  • Body
Floor 16 mm (0.63 in) High tensile strength 400 BHN abrasion resistant
Front 9 mm (0.35 in) High tensile strength 400 BHN abrasion resistant
Sides 9 mm (0.35 in) High tensile strength 400 BHN abrasion resistant
Canopy 6 mm (0.24 in) High tensile strength 400 BHN abrasion resistant
Corners 12 mm (0.47 in) High tensile strength 400 BHN abrasion resistant
  • Service Capacities
Crankcase (Includes Filters) 260 L 　(68.68472 gal.)
Engine Cooling System 576 L 　(152.163072 gal.)
Fuel Tank (Standard) 2 170 L　(573.25 gal.)
Fuel Tank (Optional) 4 172 L　(1 102.13 gal.)
Hydraulic System 1 000 L　(264.17 gal.)
Brake Cooling System 550 L 　(145.29 gal.)
Planetary Drives (L & R) 300 L 　(79.25 gal.)
Front Wheels (L & R) 42 L 　(11.10 gal.)
Windshield Washer 5.3 L 　(1.40 gal.)
Main Accumulator 61 L 　(16.09 gal.)
  • Dimensions
Overall length 15 260 mm
Overall width 8 560 mm
Overall height 7 400 mm
  • Diameter
Wheelbase 6 040 mm
Tread (Front Wheels Rear Wheels WT) Front Wheels : 6 010 mm / Rear Wheels WT : 4 960 mm
Vehicle Width (Front Wheels Rear Wheels) Front Wheels : 7 340 mm / Rear Wheels : 7 720 mm
Ground Clearance (Front Axle Rear Axle) Front Axle : 1 060 mm / Rear Axle : 860 mm
Front Overhang 4 840 mm
Body Inside Dimensions (Length Width) Length : 9 180 mm / Width : 7 560 mm
Body Upper Edge Height 6 790 mm
Body Dump Height (Maximum Minimum) Maximum : 14 620 mm / Minimum : 1 600 mm
  • Specifications
Nominal Payload 242 tonnes (267 tons)
Gross machine operating weight (kg) 422 tonnes (465 tons)
Engine Rated Power (kW) Standard: 1 864 kW (2 534 PS , 2 500 HP)　Option: 2 013 kW (2 738 PS , 2 700 HP)
/

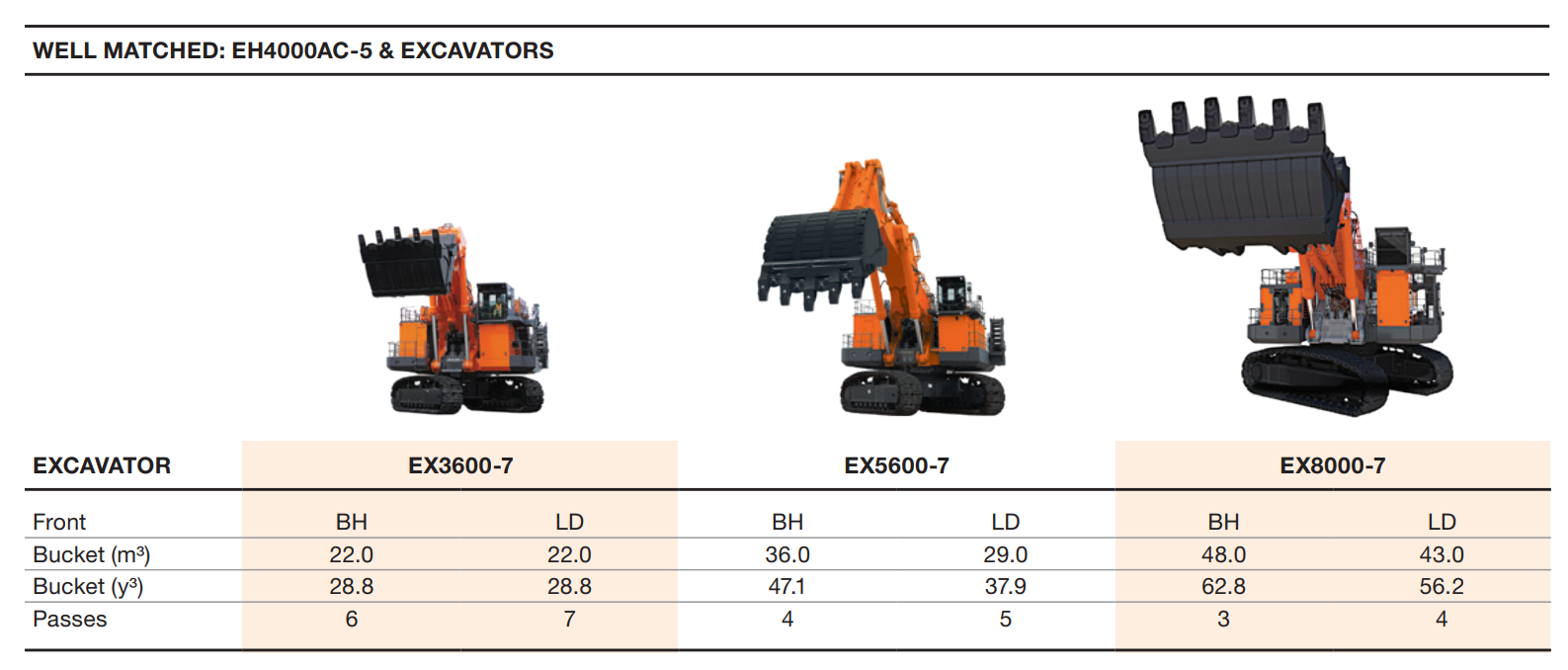

Pass Match
