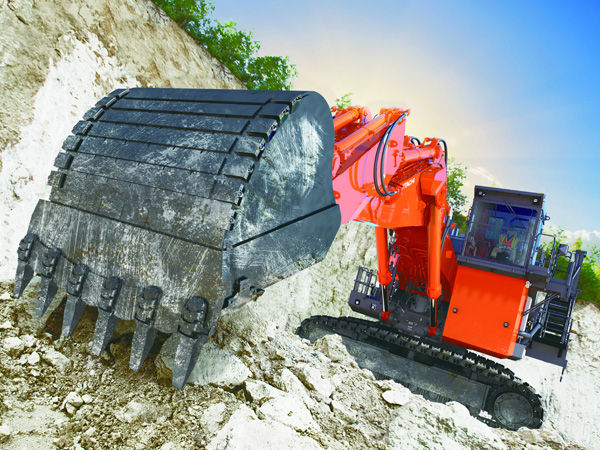

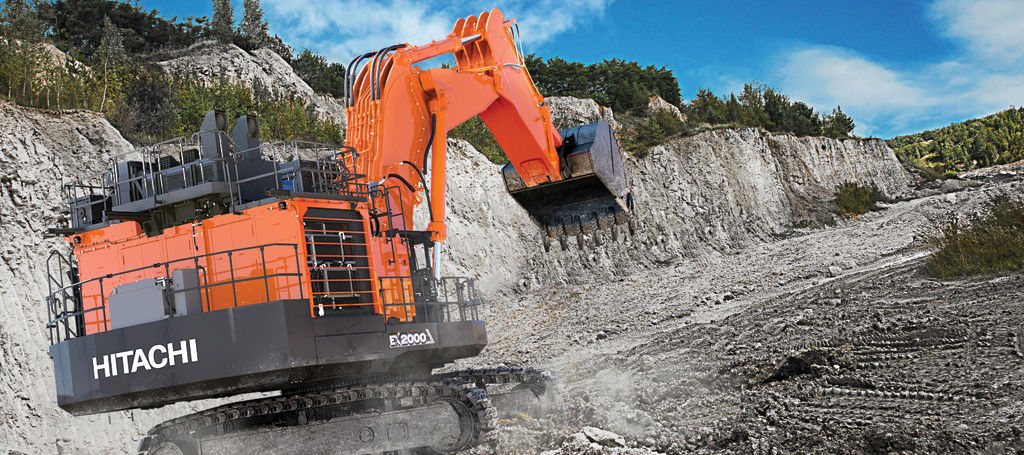

About the EX2000-7E

The EX2000-7 has been built to withstand the harshest mining conditions while delivering outstanding productivity and exceptional around-the-clock performance. Owners benefit from exceptional fuel efficiency, thanks to energy-efficient features including a new hydraulic circuit and work mode selection function.

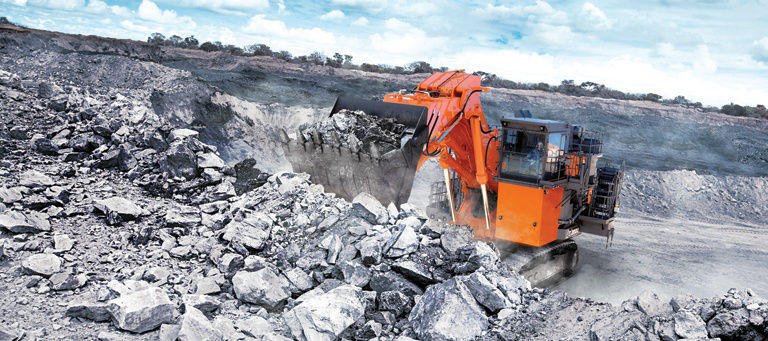

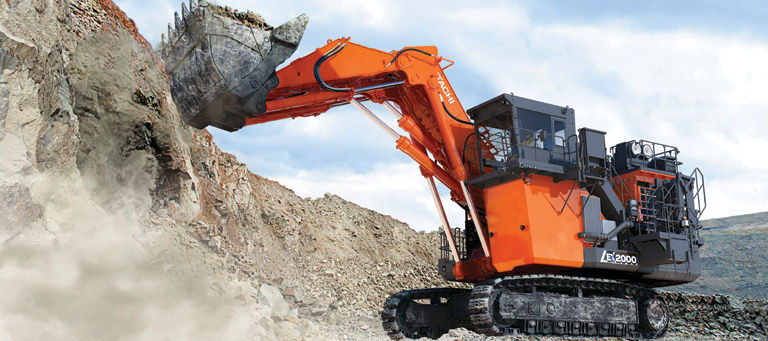

Benefits
Discover the benefits
  • Exceptional fuel efficiency.
  • Reduced life-cycle costs and less environmental impact.

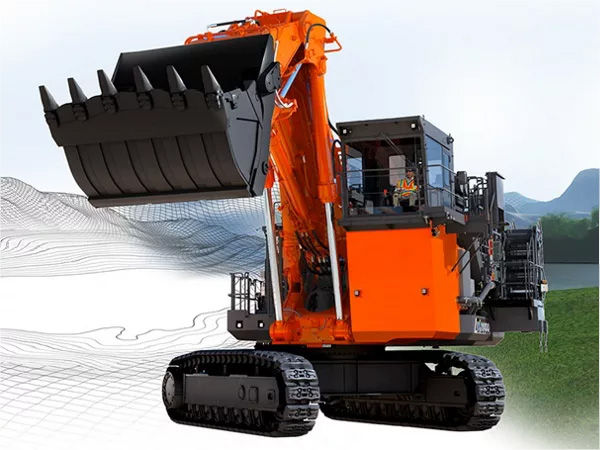

  • Integrated remote operation system, operation support system and autonomous operation function.
Specifications

Specifications for the EX2000-7E Excavator

Expand all Collapse all
  • Engine & hydraulic system
Main pumps 6 variable-displacement, axial piston pumps for front attachment, travel and swing
Maximum oil flow 6 x 335 L/min (6 x 88 gal./min.)
  • Attachments
Bucket Capacity (ISO 7546 Heaped 2 1) Loding Shovel 12.0 m3 (15.7 cu.yd.) : Material density 1 800 kg/m3 (3,034lb./cu.yd.) or less
Bucket Capacity (ISO 7546 Heaped 2 1) Loding Shovel 13.5 m3 (17.7 cu yd.): Material density 1 800 kg/m3 (3,034lb./cu.yd.) or less
Bucket Capacity (ISO Heaped) Backhoe (ISO 751:2007 Heaped 1:1) 12.0 m3 (15.7 cu.yd.): Material density 1 800 kg/m3 (3,034 lb./cu.yd.) or less
Bucket Capacity (ISO Heaped) Backhoe (ISO 751:2007 Heaped 1:1) 14.0 m3 (18.3 cu.yd.): Material density 1 600 kg/m3 (2,697 lb./cu.yd.) or less
  • Weights and Ground pressure (Loading Shovel)
Shoe type Induction-Hardened Cast Steel. Triple Box
Shoe width 800 mm (32 in.)
Operating weight 194 000 kg (427,697 lb.)
Ground pressure 187 kPa (1.90 kgf/cm2, 27.1 psi)
  • Weights and Ground pressure (Backhoe)
Shoe type Induction-Hardened Cast Steel. Triple Box
Shoe width 800 mm (32 in.)
Operating weight 195 000 kg (429,901 lb.)
Ground pressure 188 kPa (1.91 kgf/cm2, 27.3 psi)
  • Working ranges
Max. digging reach Loading Shovel 13 490 mm (44 ft. 3 in.)
Max. dumping height Loading Shovel 10 160 mm (33 ft. 4 in.)
Max. digging reach Backhoe 15 340 mm (50 ft. 4 in.)
Max. digging depth Backhoe 8 090 mm (26 ft. 7 in.)
Max. dumping height Backhoe 9 360 mm (30 ft. 9 in.)
  • Dimensions
Undercarriage width 5 400 mm (17 ft. 9 in.)
Overall width of upper structure 7 240 mm (23 ft. 9 in.)
  • Specifications
Operating weight (kg) Loading Shovel: 190 000 kg (418,878 lb.) / Backhoe: 191 000 kg (421,083 lb.)
Bucket capacity (m³) ISO Heaped [Loading Shovel: ISO 7546 Heaped 2:1] : 12.0 - 13.5 m3 (15.7 - 17.7 cu. yd.) / [Backhoe: ISO 7451:2007] : 12.0 - 14.0 m3 (15.7 - 18.3 cu. yd.)
