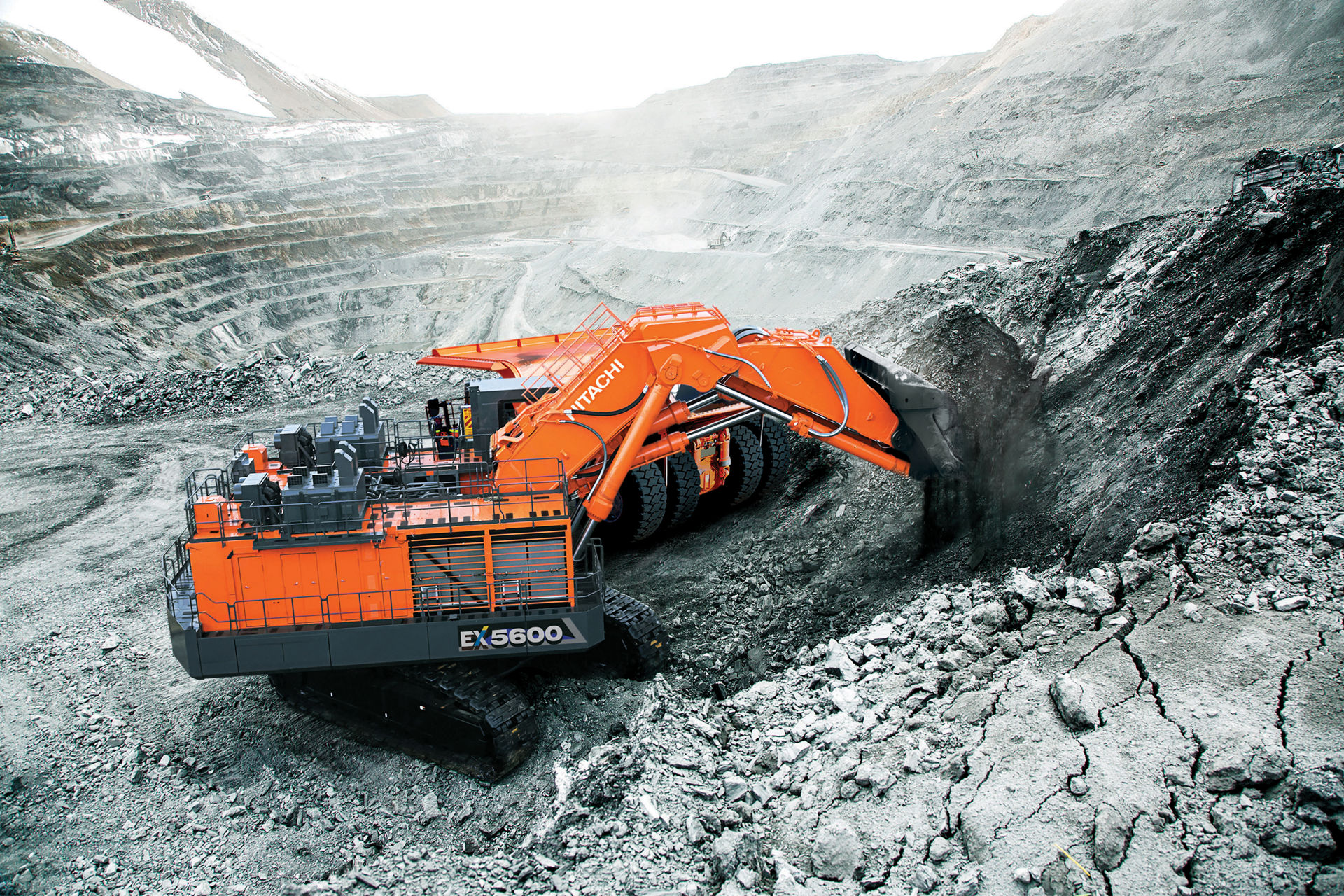

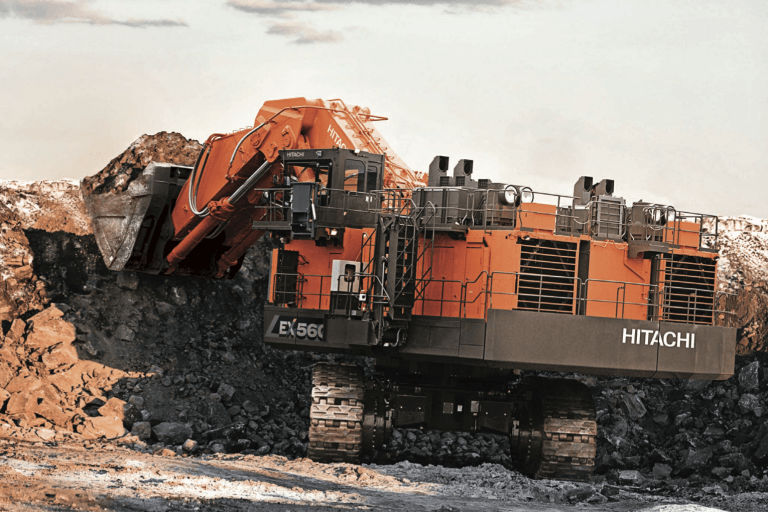

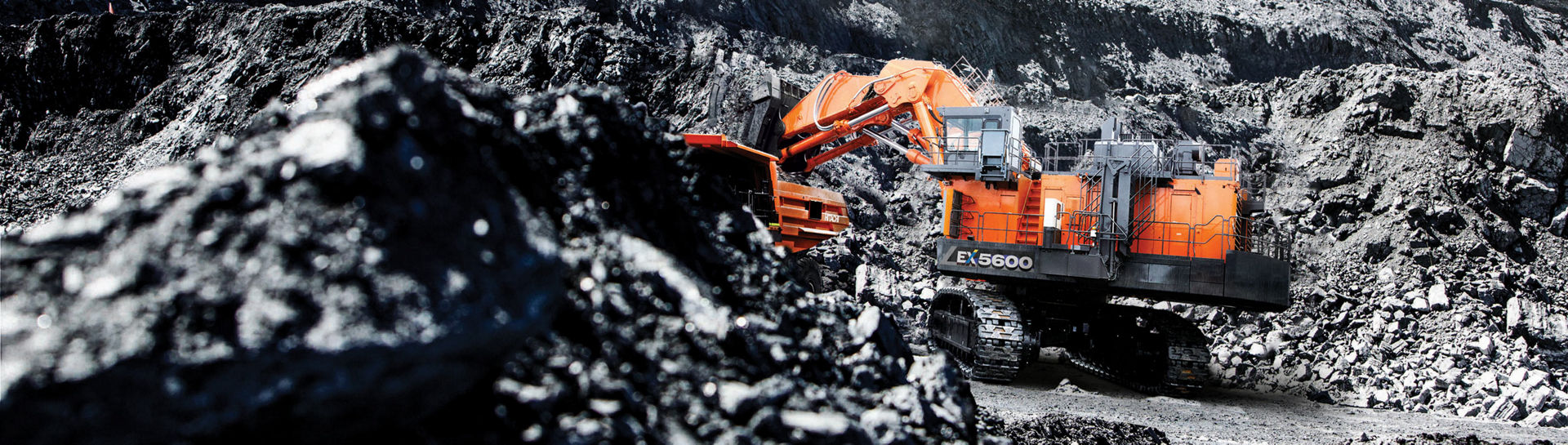

EX5600-7B

Introducing the NEW EX5600-7 The Hitachi Construction Machinery EX-7 series is borne from sheer engineering excellence, balancing innovation with proven design to deliver industry leading excavators. With simplified maintenance and a focus on operator comfort, Hitachi Construction Machinery offers a productive, durable solution for all mining operations. Incorporating the latest technologies, systems and safety features, the EX5600-7 delivers unrivalled performance and reliability in its class.

Engine Rated Power (kW): Cummins: 2 x 1 119 kW (1 520 PS, 1 500 HP) (Tier 4 Final) / MTU: 2 x 1 150 kW (1 563 PS, 1 542 HP) (Tier 4 Final)
Operating weight (kg): Cummins Loading Shovel : 544 000 kg (1,199,315 lb.) / Backhoe: 549 000 kg (1,210,338 lb.) / MTU Loading Shovel: 549 000 kg (1,210,338 lb.) / Backhoe: 553 000 kg (1,219,156 lb.)
Bucket capacity (m³) ISO Heaped: [Loading Shovel: ISO 7546 Heaped 2:1] : 27.0 - 31.0 m3 (35.3 - 40.5 cu. yd.) / [Backhoe: ISO 7451:2007] : 34.0 - 38.5 m3 (44.5 - 50.4 cu. yd.)

Introducing the NEW EX5600-7 The Hitachi Construction Machinery EX-7 series is borne from sheer engineering excellence, balancing innovation with proven design to deliver industry leading excavators. With simplified maintenance and a focus on operator comfort, Hitachi Construction Machinery offers a productive, durable solution for all mining operations. Incorporating the latest technologies, systems and safety features, the EX5600-7 delivers unrivalled performance and reliability in its class.

Quotation Request
Find A Dealer
Compare Model
Overview
About the EX5600-7B

Designed for sustainability The Hitachi Costruction Machinery EX-7 series utilizes the latest advancements in engine and energy optimization technologies to deliver a customized and sustainable machine, while providing a significant reduction in fuel consumption without compromising productivity. The EX5600-7 offers a selection of engine models, including the choice of emission configurations to meet regulatory requirements, combined with new electronically controlled hydraulic pumps, optimized cooling package and enhanced hydraulic circuits, to provide unparalleled performance and efficiency. Designed for productivity Engineered from the ground up with advanced technologies to maximize productivity, the EX5600-7 delivers a reliable solution for all operations. Embracing the Hitachi Construction Machinery design philosophy of balanced reliability and productivity, the EX5600-7 optimizes machine performance, providing a consistent and dependable solution to meet the demands of the mining industry.

Benefits
Discover the benefits
  • Exceptional fuel efficiency.
  • Reduced life-cycle costs and less environmental impact.
  • Integrated remote operation system, operation support system and autonomous operation function.
Download Brochure
Specifications

Specifications for the EX5600-7B Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model Cummins QSKTA50-CE (Tier 4 Final)
Rated power ISO 14396 2 x 1 119 kW (2 x 1 520PS, 2 x 1 500 HP)
Piston displacement 2 x 50 L (2 x 3,051 cu.in.)
Engine Model MTU 12V4000 C15 (Tier 4 Final)
Rated power ISO 14396 2 x 1 150 kW (2 x 1 563 PS, 2 x 1 542 HP)
Piston displacement 2 x 57.2 L (2 x 3,491 cu.in.)
Main pumps 12 variable-displacement, axial piston pumps for front attachment, travel and swing
Maximum oil flow 8 x 375 L/min (8 x 99.1 gal./min.), 4 x 425 L/min (4 x 112.3 gal/min)
  • Attachments
Bucket Capacity (ISO 7546 Heaped 2 1) Loding Shovel 27.0 m3 (35.3 cu.yd.): Material density 1 800 kg/m3 (3,034 lb./cu.yd.) or less
Bucket Capacity (ISO 7546 Heaped 2 1) Loding Shovel 29.0 m3 (38 cu.yd.): Material density 1 800 kg/m3 (3,034 lb./cu.yd.) or less
Bucket Capacity (ISO 7546 Heaped 2 1) Loding Shovel 31.5 m3 (40.5 cu.yd.): Material density 1 600 kg/m3 (2,697 lb./cu.yd.) or less
Bucket Capacity (ISO Heaped) Backhoe (ISO 751:2007 Heaped 1:1) 34.0 m3 (44.5 cu.yd.): Material density 1 800 kg/m3 (3,034 lb./cu.yd.) or less
Bucket Capacity (ISO Heaped) Backhoe (ISO 751:2007 Heaped 1:1) 36.0 m3 (47.1 cu.yd.): Material density 1 800 kg/m3 (3,034 lb./cu.yd.) or less
Bucket Capacity (ISO Heaped) Backhoe (ISO 751:2007 Heaped 1:1) 38.5 m3 (50.4 cu.yd.): Material density 1 600 kg/m3 (2,697 lb./cu.yd.) or less
  • Weights and Ground pressure (Loading Shovel)
Shoe type Induction-Hardened Cast Steel
Shoe width 1 400 mm (55 in.)
Operating weight 544 000 kg (1,199,315 lb.)
Ground pressure 244 kPa (2.49 kgf/cm2, 35.4 psi)
  • Weights and Ground pressure (Backhoe)
Shoe type Induction-Hardened Cast Steel
Shoe width 1 400 mm (55 in.)
Operating weight 549 000 kg (1,210,338 lb.)
Ground pressure 246 kPa (2.51 kgf/cm2, 35.7 psi)
  • Working ranges
Max. digging reach Loading Shovel 17 000 mm (55 ft. 9 in.)
Max. dumping height Loading Shovel 13 100 mm (43 ft.)
Max. digging reach Backhoe 20 200 mm (66 ft. 3 in.)
Max. digging depth Backhoe 8 800 mm (28 ft. 11 in.)
Max. dumping height Backhoe 12 200 mm (40 ft.)
  • Dimensions
Undercarriage width 7 400 mm (24 ft. 3 in.)
Overall width of upper structure 10 300 mm (34 ft.)
  • Specifications
Engine Rated Power (kW) Cummins: 2 x 1 119 kW (1 520 PS, 1 500 HP) (Tier 4 Final) / MTU: 2 x 1 150 kW (1 563 PS, 1 542 HP) (Tier 4 Final)
Operating weight (kg) Cummins Loading Shovel : 544 000 kg (1,199,315 lb.) / Backhoe: 549 000 kg (1,210,338 lb.) / MTU Loading Shovel: 549 000 kg (1,210,338 lb.) / Backhoe: 553 000 kg (1,219,156 lb.)
Bucket capacity (m³) ISO Heaped [Loading Shovel: ISO 7546 Heaped 2:1] : 27.0 - 31.0 m3 (35.3 - 40.5 cu. yd.) / [Backhoe: ISO 7451:2007] : 34.0 - 38.5 m3 (44.5 - 50.4 cu. yd.)
Download Brochure
Attachments
Attachments enhance the versatility of your EX5600-7B
  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.
