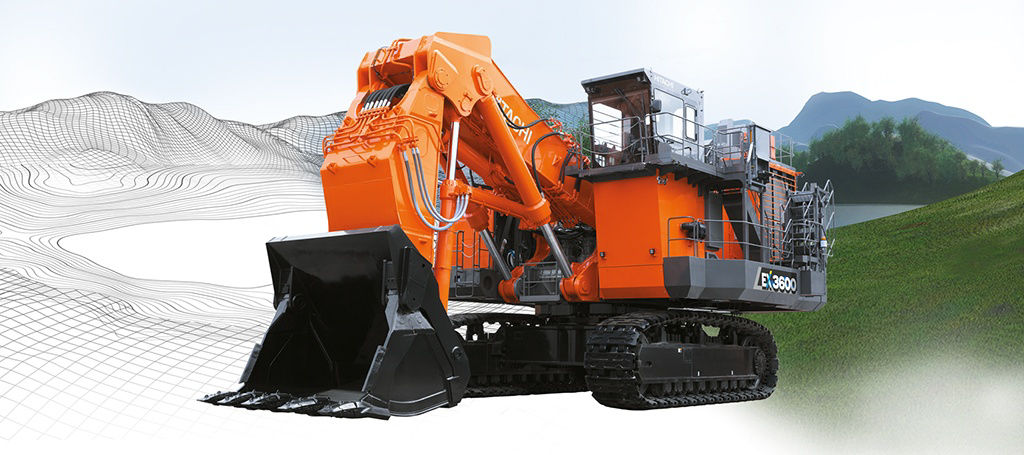

Large Excavators EX3600-7 (Electric Drive)

With its renowned design and innovative features, Hitachi Construction Machinery's EX3600-7 large excavator has emerged from a long line of predecessors to become the best model of its class on the market. Mining operations with the EX3600-7 benefit from maximised efficiency, assured durability, and a seamless operator experience.

Electric Motor Power Output (kW): 1200 kW (1 632 PS, 1 609 HP)
Operating weight (kg): 368 000 - 369 000 kg
Bucket capacity (m³) ISO Heaped: [Loading Shovel: ISO 7546 Heaped 2:1] : 22.0 - 24.0 m3 (28.8 - 31.4 cu. yd.) / [Backhoe: ISO 7451:2007] : 22.0 - 24.0 m3 (28.8 - 31.4 cu. yd.)

With its renowned design and innovative features, Hitachi Construction Machinery's EX3600-7 large excavator has emerged from a long line of predecessors to become the best model of its class on the market. Mining operations with the EX3600-7 benefit from maximised efficiency, assured durability, and a seamless operator experience.

Contact Your Dealer
Compare Model
Overview

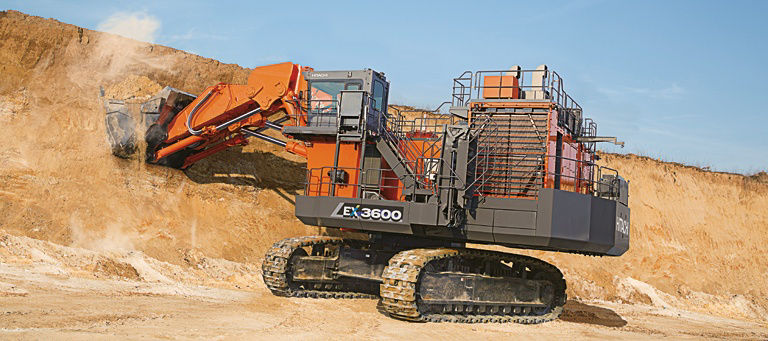

About the EX3600-7

The EX3600-7 has been built to withstand the harshest mining conditions while delivering outstanding productivity and exceptional around-the-clock performance. Operators also benefit from complete comfort, thanks to enhanced features in the cab, such as advanced air suspension seating and improved climate control.

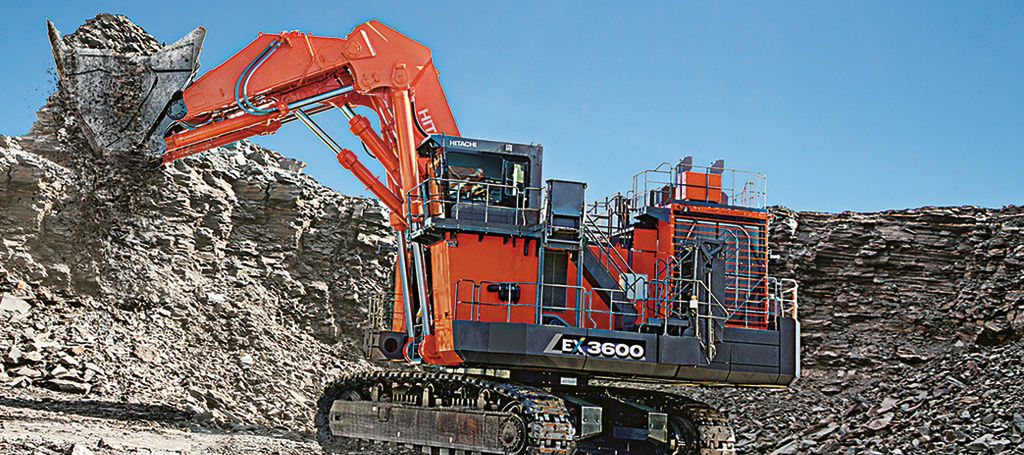

Benefits

Discover the benefits

  • Superior productivity under different digging profiles.
  • Hitachi Construction Machinery’s energy optimisation technologies are kinder to the planet and reduce consumption costs.
  • Easier and safer to maintain than ever before with an intuitive design.
  • Low vibration levels in the cab results in a more comfortable working environment.
Download Brochure
Specifications

Specifications for the EX3600-7 (Electric Drive) Excavator

Expand all Collapse all
  • Electric Motor & hydraulic system
Electric Motor Power Output (kW) 1200 kW (1 632 PS, 1 609 HP)
Main pumps 8 variable-displacement, axial piston pumps for front attachment, travel and swing
Maximum oil flow 8 x 500 L/min (8 x 132 gal./min.)
  • Attachments
Bucket Capacity (ISO 7546 Heaped 2 1) Loading Shovel 22.0 m3 (28.8 cu.yd.) : Material density 1 800 kg/m3 (3,034lb./cu.yd.) or less
Bucket Capacity (ISO 7546 Heaped 2 1) Loading Shovel 24.0 m3 (31.4 cu.yd.): Material density 1 600 kg/m3 (2,697lb./cu.yd.) or less
Bucket Capacity (ISO Heaped) Backhoe (ISO 7451:2007 Heaped 1:1) 22.0 m3 (28.8 cu.yd.): Material density 1 800 kg/m3 (3,034 lb./cu.yd.)
Bucket Capacity (ISO Heaped) Backhoe (ISO 7451:2007 Heaped 1:1) 24.0 m3 (31.4 cu.yd.): Material density 1 600 kg/m3 (2,697 lb./cu.yd.)
  • Weights and Ground pressure (Loading Shovel)
Shoe type Induction-Hardened Cast Steel
Shoe width 1 270 mm (50 in.)
Operating weight 368 000 kg (811,000 lb.)
Ground pressure 193 kPa (1.97 kgf/cm2, 28.0 psi)
  • Weights and Ground pressure (Backhoe)
Shoe type Induction-Hardened Cast Steel
Shoe width 1 270 mm (50 in.)
Operating weight 369 000 kg (814,000 lb.)
Ground pressure 194 kPa (1.97 kgf/cm2, 28.1 psi)
  • Working ranges
Max. digging reach Loading Shovel 15 700 mm (52 ft. 6 in.)
Max. dumping height Loading Shovel 11 000 mm (36 ft. 2 in.)
Max. digging reach Backhoe 18 300 mm (59 ft. 10 in.)
Max. digging depth Backhoe 8 640 mm (28 ft. 4 in.)
Max. dumping height Backhoe 11 550 mm (37 ft. 9 in.)
  • Dimensions
Undercarriage width 6 770 mm (22 ft. 3 in.)
Overall width of upper structure 9 420 mm (30 ft. 11 in.)
  • Specifications
Operating weight (kg) 368 000 - 369 000 kg
Bucket capacity (m³) ISO Heaped [Loading Shovel: ISO 7546 Heaped 2:1] : 22.0 - 24.0 m3 (28.8 - 31.4 cu. yd.) / [Backhoe: ISO 7451:2007] : 22.0 - 24.0 m3 (28.8 - 31.4 cu. yd.)
Download Brochure
Attachments

Attachments enhance the versatility of your EX3600-7 (Electric Drive)

  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.
Download Brochure
